2005247-2 | TE Connectivity

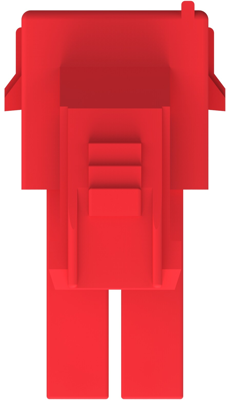

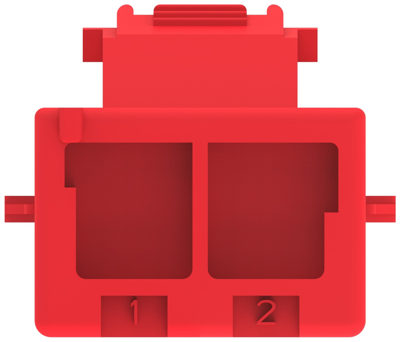

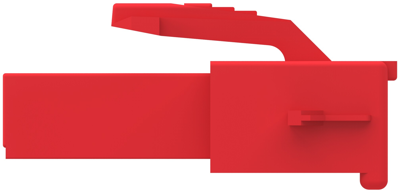

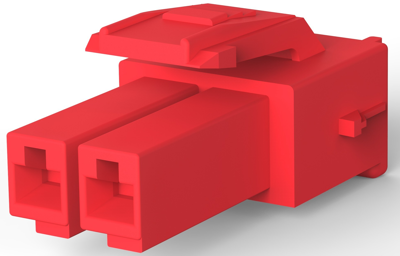

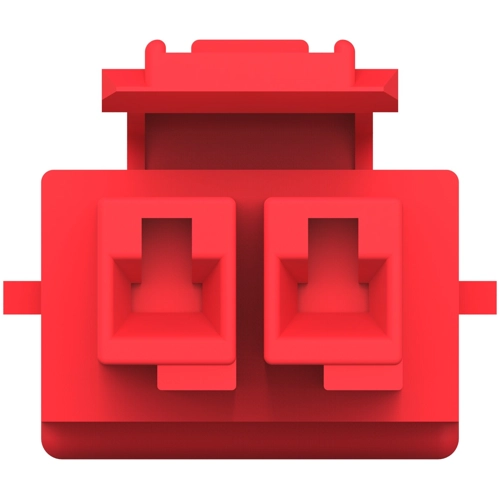

Plug housing, 2 pole, pitch 3.96 mm, straight, red, 2005247-2
Order No.: 34P6142
EAN: 4099889910636
MPN:
2005247-2
Unit Price (€ / pc.)
0.2963 € *
Standard delivery time from the manufacturer is: 24 Weeks
PCB Connection System, 2005247-2, TE Connectivity
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: PA 66
- Housing Color: red
- Number of positions: 2
- Operating Temperature Range: -30 – 65 °C [-22 – 149 °F]
- Centerline (Pitch): 3.96 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | clamp connection | |
| Rated voltage | 300 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Breakable | No | |
| Version | plug housing | |
| Pin number | 2 pole | |
| Contact type | socket | |
| Grid | 3.96 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
