2000890-1 | TE Connectivity

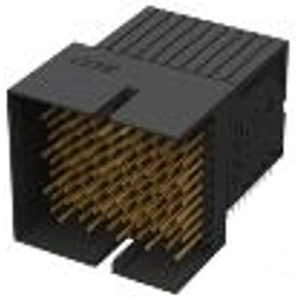

Pin header, 90 pole, pitch 1.9 mm, angled, black, 2000890-1
Order No.: 34P2668
EAN: 4099889909678
MPN:
2000890-1
Unit Price (€ / pc.)
94.248 € *
Standard delivery time from the manufacturer is: 45 Weeks
PCB Connection System, 2000890-1, TE Connectivity
Board-to-Board, Printed Circuit Board, Right Angle, 90 Position
Technical Data
- Connector Mounting Type: Board Mount
- Orientation: angled
- Number of positions: 90
- Operating Temperature Range: -65 – 125 °C [-85 – 257 °F]
- Rated current: 1.5 A
- Centerline (Pitch): 0.075 mm
- Row-to-Row Spacing: 1.4 mm [0.055 in]
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Colour | black | |
| Type of locking | Yes | |
| Pin number | 90 pole | |
| Additional parts | equipped | |
| Breakable | No | |
| Connection | press-fit | |
| Rated voltage | 150 V | |
| Contact type | pin | |
| Rated current | 1.5 A | |
| contact surface | gold-plated | |
| Orientation | angled | |
| Grid | 1.9 mm | |
| Number of rows | 9 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | No |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
