2-2834075-3 | TE Connectivity

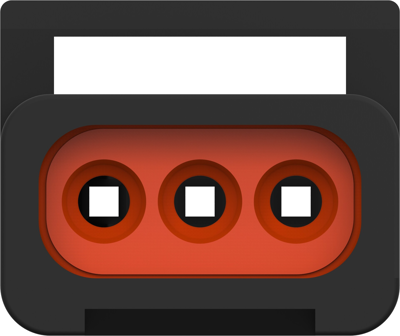

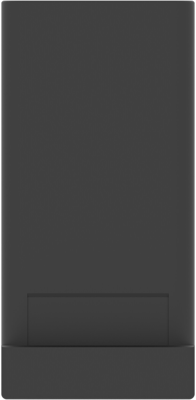

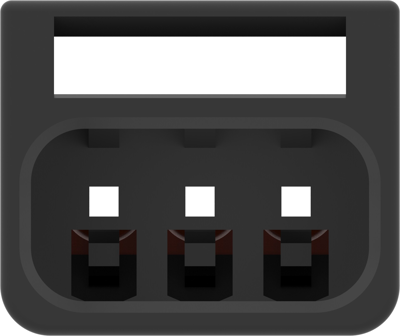

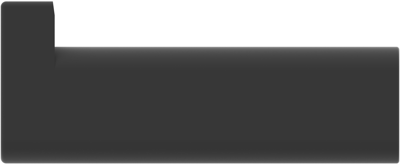

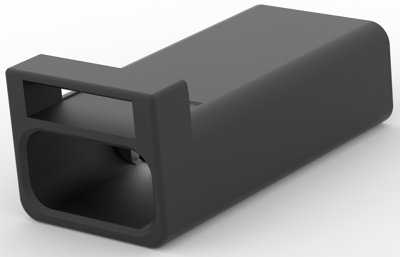

Socket housing, 3 pole, pitch 2.5 mm, straight, black, 2-2834075-3
Unit Price (€ / pc.)
0.9996 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
5.00 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9996 €
10 pcs.
0.9282 €
25 pcs.
0.8568 €
50 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable mount socket, 2-2834075-3, TE
These IP67 compact connector have a tough thermoplastic housing and a rubber seal making them suitable for the harshest environments.
Features
- Compact design
- Sealed to IP67 when mated
- Easy assembly identification with three colour options
- Pre-assembled seals saving valuable assembly time
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Breakable | No | |
| Contact type | pin | |
| Version | socket housing | |
| Rated current | 5 A | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 3 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
