2-2834074-2 | TE Connectivity

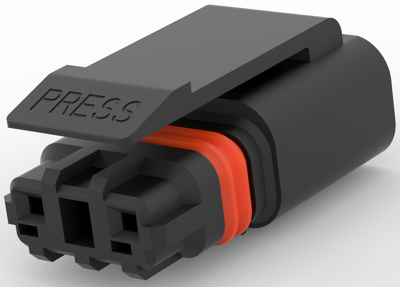

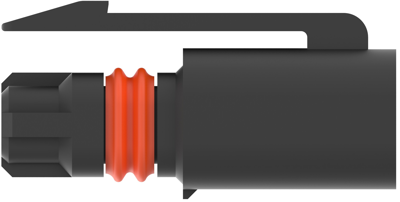

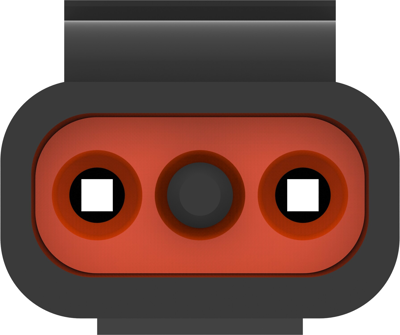

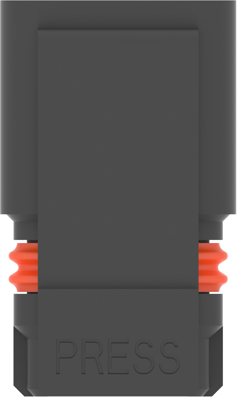

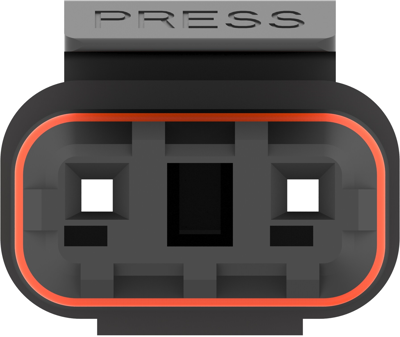

Plug housing, 2 pole, pitch 2.5 mm, straight, black, 2-2834074-2
Unit Price (€ / pc.)
1.5827 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.58 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5827 €
10 pcs.
1.4637 €
25 pcs.
1.3685 €
50 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature connector, 2-2834074-2, TE
TE SlimSeal connector miniature is a dust and waterproof, IP67-rated connector system suitable for harsh environment applications such as outdoor lightning and other humidity applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5 A | |
| Colour | black | |
| Additional parts | unequipped | |
| Contact type | socket | |
| Grid | 2.5 mm | |
| Orientation | straight | |
| Rated voltage | 400 V | |
| Connection | crimp connection | |
| Breakable | No | |
| Pin number | 2 pole | |
| Version | plug housing | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
