2-2303376-1 | TE Connectivity

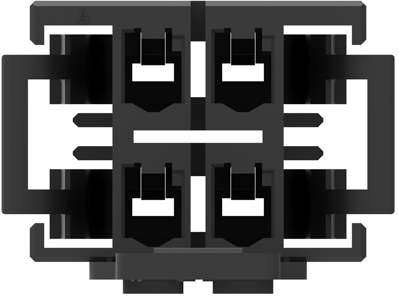

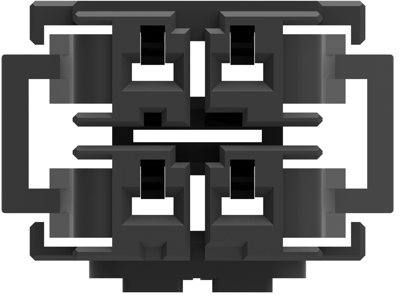

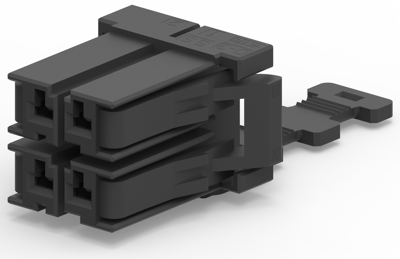

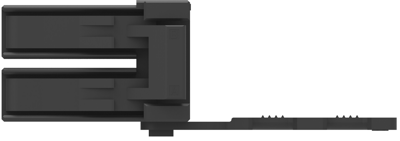

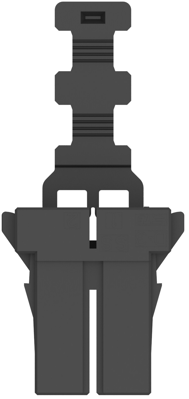

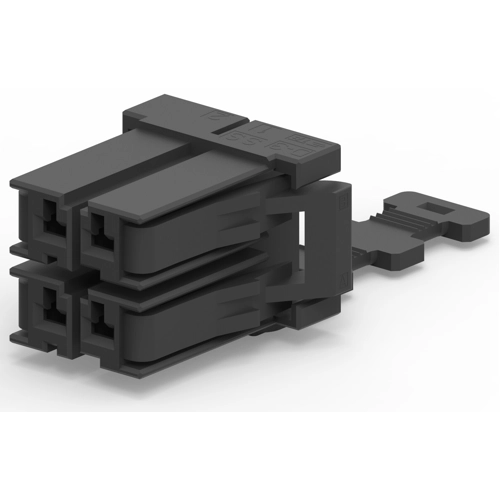

Socket housing, 4 pole, pitch 5.08 mm, straight, black, 2-2303376-1
Unit Price (€ / pc.)
4.1412 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
4.14 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1412 €
10 pcs.
3.8437 €
25 pcs.
3.5938 €
50 pcs.
3.2606 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle housing, 2-2303376-1, TE Connectivity
Housing, Receptacle, Wire-to-Board, 4 Position, 5.08 mm Centerline, Crimp, 2 Row, Black, Mating retention, Wire & Cable.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Pin number | 4 pole | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 5.08 mm | |
| Number of rows | 2 | |
| Connection | crimp connection | |
| Rated current | 15 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
