2-2299960-1 | TE Connectivity

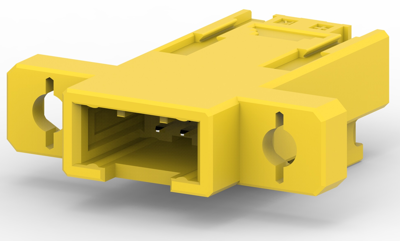

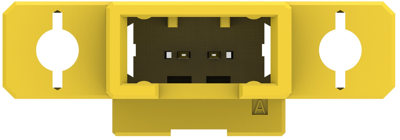

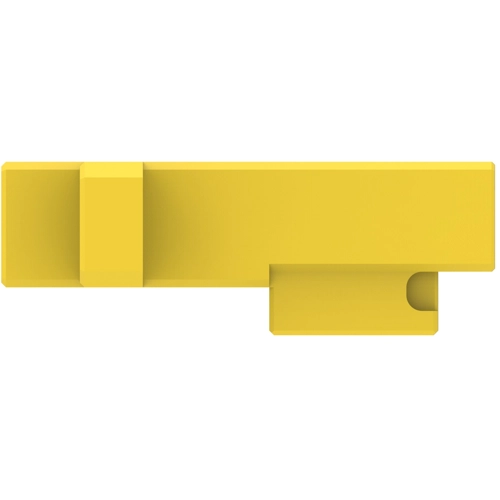

Plug housing, 2 pole, pitch 2.5 mm, straight, yellow, 2-2299960-1
Unit Price (€ / pc.)
23.9785 € *
Available in 5 Days: 457 pcs. - if ordered today
Total Price:
23.98 € *
Price list
Quantity
Price per unit*
1 pcs.
23.9785 €
5 pcs.
22.7290 €
10 pcs.
21.2653 €
25 pcs.
19.3851 €
*incl. VAT plus shipping costs
Subject to prior sale
Thermocouple connector, 2-2299960-1, TE Connectivity
The 2-2299960-1 is a thermocouple connector that enables easy connection with thermocouple wire. This unique spring terminal concept enables outstanding connectivity compared with the traditional screw type termination. The “push-on lock concept” allows easy mating while the unique shape of the metal-locking mechanism prevents unintentional unmating. Better mating reliability because of the metal lock concept which prevents unintentional un-mating and is supported by an audible click when mated.
Features
- Touch Proof design supports IP20 degree of protection
- Supports Free-hanging and Panel Mount solution
- Space saving compact design
- Spring Clamp concept ensures outstanding connectivity /manufacturability
Applications
- Semiconductor Machinery
- Injection Molding Machine
- Machine Tool Equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Colour | yellow | |
| Type of locking | Yes | |
| Pin number | 2 pole | |
| Additional parts | equipped | |
| Connection | spring-clamp connection | |
| Contact type | tab | |
| Orientation | straight | |
| Grid | 2.5 mm | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
