2-2299683-1 | TE Connectivity

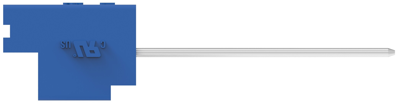

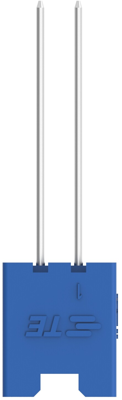

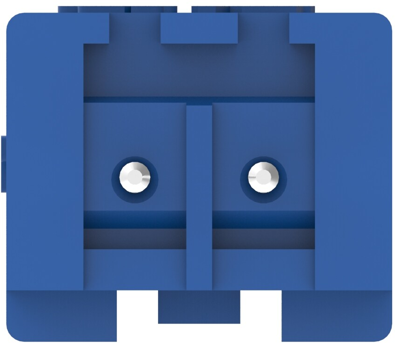

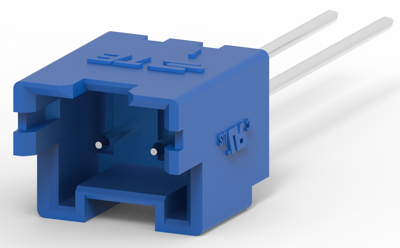

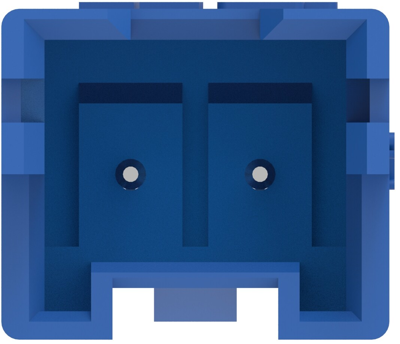

Pin header, 2 pole, pitch 2.5 mm, straight, blue, 2-2299683-1
Unit Price (€ / pc.)
0.1761 € *
Available in 5 Days: 10,800 pcs. - if ordered today
Total Price:
17.61 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1761 €
250 pcs.
0.1630 €
500 pcs.
0.1511 €
1000 pcs.
0.1369 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 2-2299683-1, TE Connectivity
The 2-2299683-1 is a economy power connector that provides a comprehensive connectivity solution with vertical and Right angle headers, optional TPA retainers, wire-to-wire and wire-toboard options and a range of resin materials that include types meeting. This product has asymmetrical terminals that can only be loaded into housing in one way.
Features
- Housing locking latch
- Polarization tabs
- Standard or low insertion force (LIF) terminals
- Anti-fretting contact lubricant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 4.2 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | blue | |
| Pin number | 2 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
