2-2296207-0 | TE Connectivity

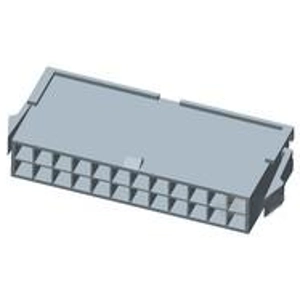

Socket header, 20 pole, pitch 4.2 mm, straight, natural, 2-2296207-0
Order No.: 35P5480
EAN: 4099889939002
MPN:
2-2296207-0
Unit Price (€ / pc.)
0.9877 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.9163 €
25 pcs.
0.8568 €
50 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-2296207-0, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 20 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging), Panel Mount
- Contact Type: Female
- Housing Material: Nylon
- Number of positions: 20
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4.2 mm | |
| Breakable | No | |
| Contact type | socket | |
| Connection | crimp connection | |
| Orientation | straight | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 20 pole | |
| Additional parts | unequipped | |
| Colour | natural | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
