2-2296206-4 | TE Connectivity

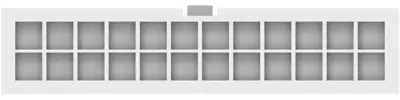

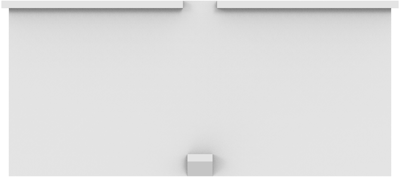

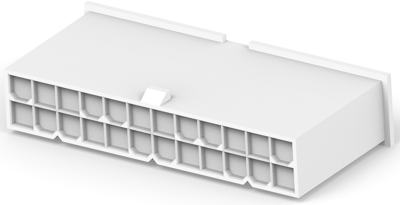

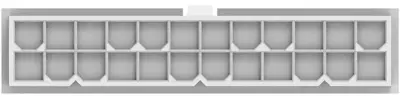

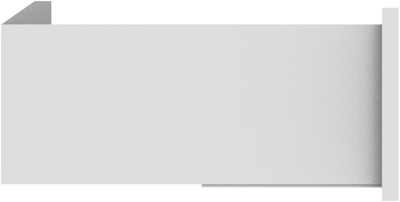

Plug housing, 24 pole, pitch 4.2 mm, straight, natural, 2-2296206-4
Order No.: 35P5491
EAN: 4099889939101
MPN:
2-2296206-4
Unit Price (€ / pc.)
0.7378 € *
Available in 5 Days: 1,600 pcs. - if ordered today
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
10 pcs.
0.6783 €
25 pcs.
0.6307 €
50 pcs.
0.5712 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-2296206-4, TE Connectivity
Wire-to-Wire, Wire & Cable, 24 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Number of positions: 24
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Pin number | 24 pole | |
| Breakable | No | |
| Type of locking | Yes | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 4.2 mm | |
| Number of rows | 2 | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
