2-2296206-0 | TE Connectivity

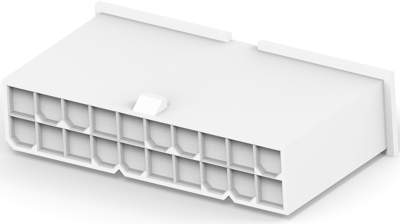

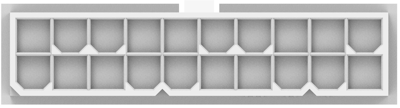

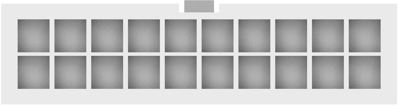

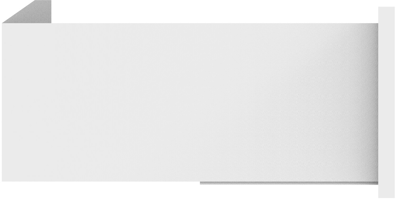

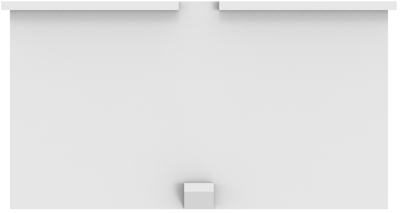

Plug housing, 20 pole, pitch 4.2 mm, straight, natural, 2-2296206-0

Order No.: 35P5477
EAN: 4099889938982
MPN:
2-2296206-0
2-2296206-0 TE Connectivity PCB Connection Systems Image 1
2-2296206-0 TE Connectivity PCB Connection Systems Image 2
2-2296206-0 TE Connectivity PCB Connection Systems Image 3
2-2296206-0 TE Connectivity PCB Connection Systems Image 4
2-2296206-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0591 € *
Available in 5 Days: 1,350 pcs. - if ordered today
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.9520 €
50 pcs.
0.8687 €
100 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-2296206-0, TE Connectivity

Wire-to-Wire, Wire & Cable, 20 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Number of positions: 20
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
Technical specifications
Colour natural
Breakable No
Type of locking Yes
Grid 4.2 mm
Pin number 20 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Number of rows 2
Logistics
Country of origin IN
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
