2-2291728-1 | TE Connectivity

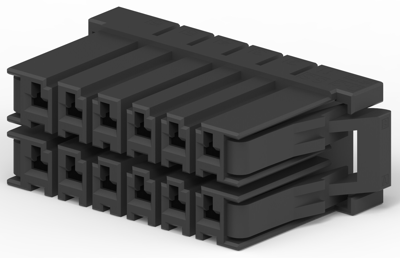

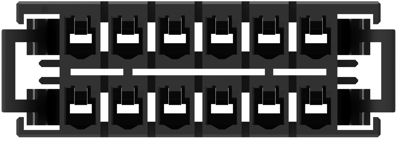

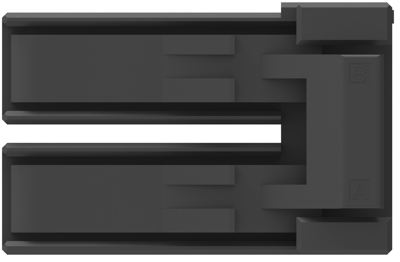

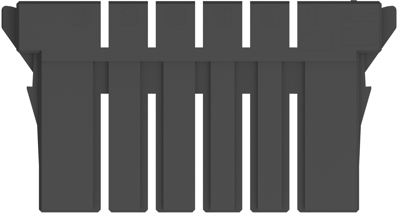

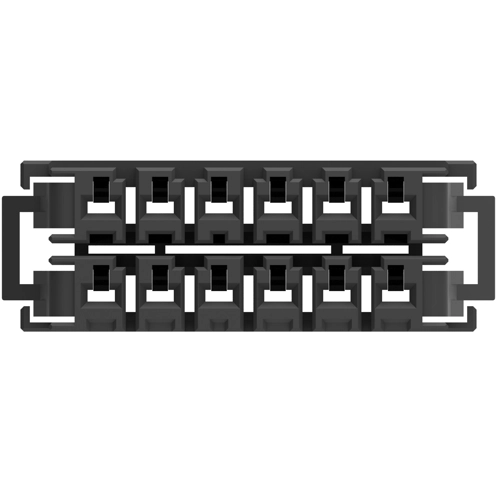

Socket housing, 12 pole, pitch 5.08 mm, straight, black, 2-2291728-1
Unit Price (€ / pc.)
3.3677 € *
Available in 5 Days: 3,194 pcs. - if ordered today
Total Price:
3.37 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3677 €
10 pcs.
3.1297 €
25 pcs.
2.9155 €
50 pcs.
2.6537 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle housing, 2-2291728-1, TE Connectivity
Housing, Receptacle, Wire-to-Board, 12 Position, 5.08 mm Centerline, Crimp, 2 Row, Black, Mating retention, Wire & Cable.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | black | |
| Pin number | 12 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Version | socket housing | |
| Rated current | 15 A | |
| Number of rows | 2 | |
| Grid | 5.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
