2-2267440-5 | TE Connectivity

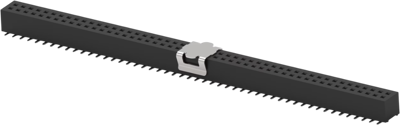

Socket header, 50 pole, pitch 1 mm, straight, black, 2-2267440-5
Order No.: 59F798
MPN:
2-2267440-5
Unit Price (€ / pc.)
13.1852 € *
Available in 5 Days: 1,029 pcs. - if ordered today
Total Price:
13.19 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1852 €
10 pcs.
12.2451 €
25 pcs.
11.4240 €
50 pcs.
10.3887 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Mount Receptacle, 2-2267440-5, TE Connectivity
PCB Mount Receptacle, Vertical, Board-to-Board, 50 Position, 1 mm Centerline, Gold (Au), Surface Mount, Signal, AMPMODU Small Centerline.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 30 V | |
| Pin number | 50 pole | |
| contact surface | gold-plated | |
| Contact type | socket | |
| Number of rows | 2 | |
| Connection | solder connection | |
| Colour | black | |
| Grid | 1 mm | |
| Rated current | 1 A | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
