2-2232876-1 | TE Connectivity
Pin header, 2 pole, pitch 6 mm, straight, natural, 2-2232876-1
Order No.: 34P8756
EAN: 4099889916256
MPN:
2-2232876-1
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Available in 5 Days: 421 pcs.
Leadtime: 21 Weeks **

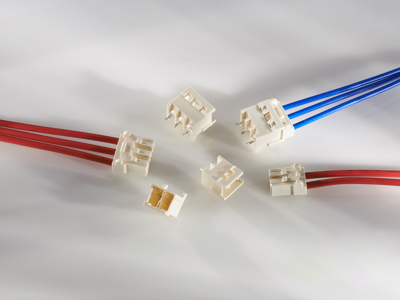

PCB Connection System, 2-2232876-1, TE Connectivity
Wire-to-Board, Printed Circuit Board, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon 6/6 GF
- Housing Color: natural
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 10 A
- Centerline (Pitch): 6 mm
- Sealable: No
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 2-polig | |
| Grid | 6 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | verzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 300 V | |
| Rated current | 10 A | |
| Additional parts | bestückt | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | natur |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
