2-2227669-0 | TE Connectivity

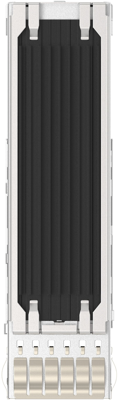

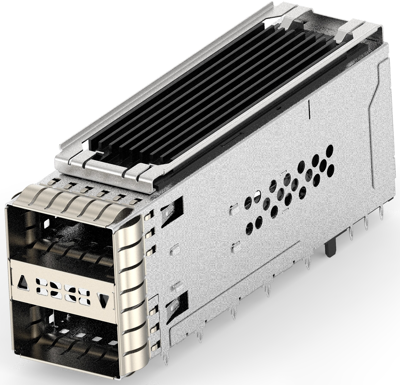

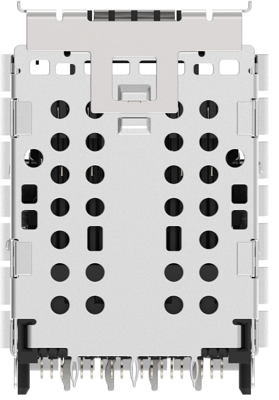

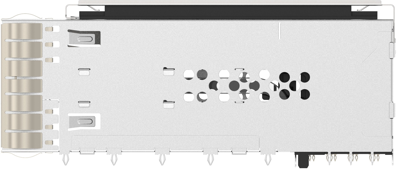

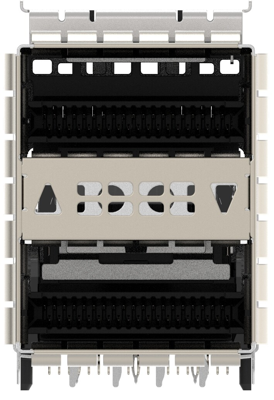

Cage with integrated plug, 76 pole, pitch 0.8 mm, angled, 2-2227669-0
Order No.: 71P5856
EAN: 4099891634681
MPN:
2-2227669-0
Unit Price (€ / pc.)
71.4357 € *
Available in 5 Days: 7,963 pcs. - if ordered today
Total Price:
71.44 € *
Price list
Quantity
Price per unit*
1 pcs.
71.4357 €
2 pcs.
66.8304 €
5 pcs.
62.7844 €
10 pcs.
58.3576 €
*incl. VAT plus shipping costs
Subject to prior sale
Cage assembly, 2-2227669-0, TE Connectivity
zQSPF+, Cage assembly, 2 x 1, Internal/External EMI Spring, Included lightpipe, 2 Port, Outer left indicator lp.
Applications
- Telecommunications
- Data center
- Medical
- Networking
- Test and measurement equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 0.5 A | |
| Grid | 0.8 mm | |
| Pin number | 76 pole | |
| Version | cage with integrated plug | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | press-fit | |
| Contact type | socket | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
