2-1971905-2 | TE Connectivity

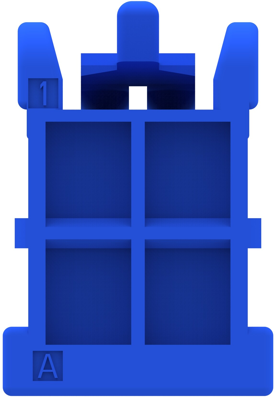

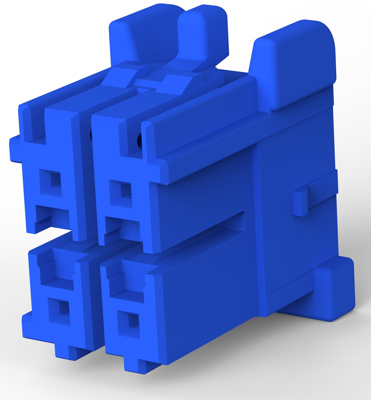

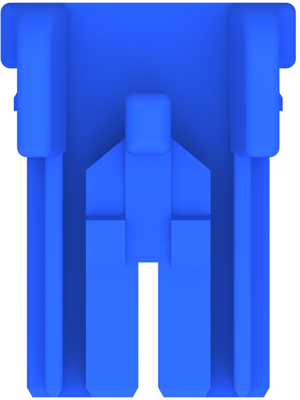

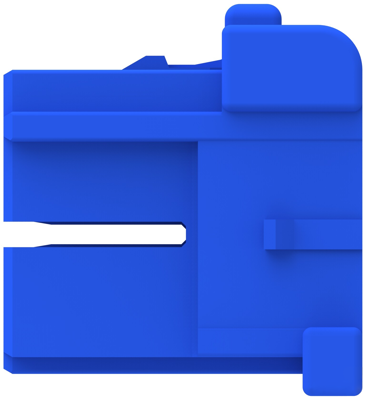

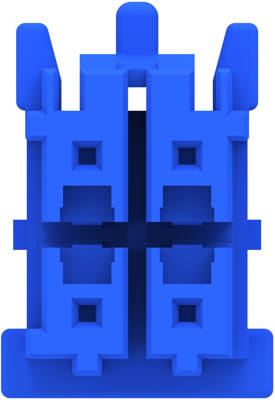

Plug housing, 4 pole, pitch 3.3 mm, straight, blue, 2-1971905-2
Order No.: 34P8791
EAN: 4099889916409
MPN:
2-1971905-2
Unit Price (€ / pc.)
0.1535 € *
Available in 5 Days: 101,000 pcs. - if ordered today
Total Price:
15.35 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1535 €
250 pcs.
0.1416 €
500 pcs.
0.1321 €
1000 pcs.
0.1190 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-1971905-2, TE Connectivity
Wire-to-Board, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: PA 66 GF
- Housing Color: blue
- Number of positions: 4
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 4 A
- Centerline (Pitch): 3.3 mm
- Row-to-Row Spacing: 5.2 mm [0.205 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Contact type | socket | |
| Pin number | 4 pole | |
| Grid | 3.3 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 4 A | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | blue |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
