2-1971798-3 | TE Connectivity

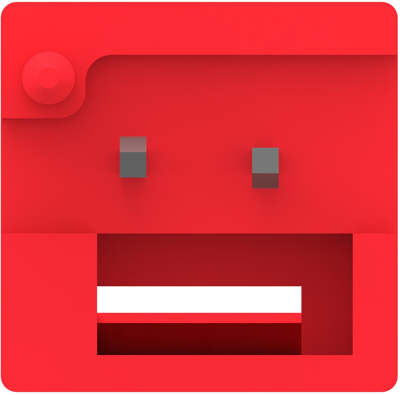

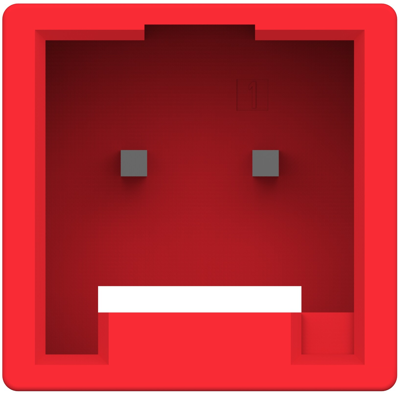

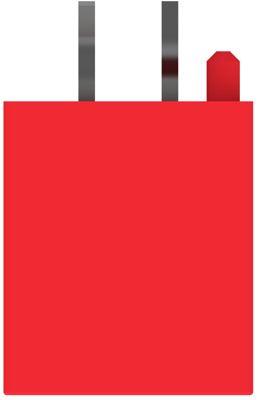

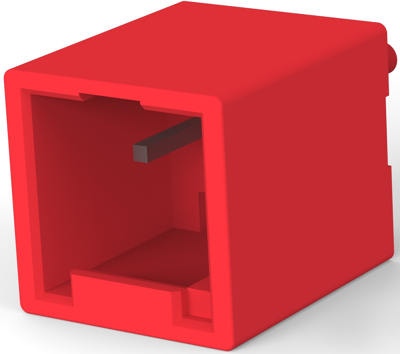

Pin header, 2 pole, pitch 2.5 mm, straight, red, 2-1971798-3
Order No.: 34P8839
EAN: 4099889916768
MPN:
2-1971798-3
Unit Price (€ / pc.)
0.1488 € *
Available in 5 Days: 116,750 pcs. - if ordered today
Total Price:
14.88 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1488 €
250 pcs.
0.1369 €
500 pcs.
0.1273 €
1000 pcs.
0.1154 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-1971798-3, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon
- Housing Color: red
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 2 pole | |
| Grid | 2.5 mm | |
| Connection | solder pin | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 50 V | |
| Rated current | 3 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | red |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
