2-1971793-3 | TE Connectivity

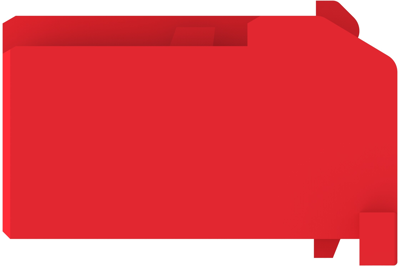

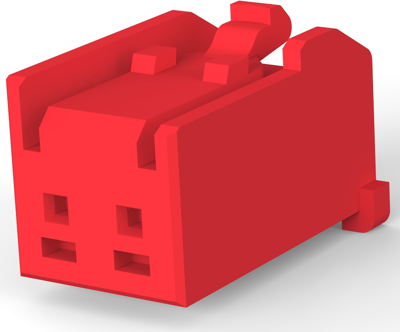

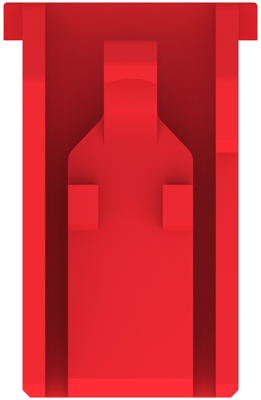

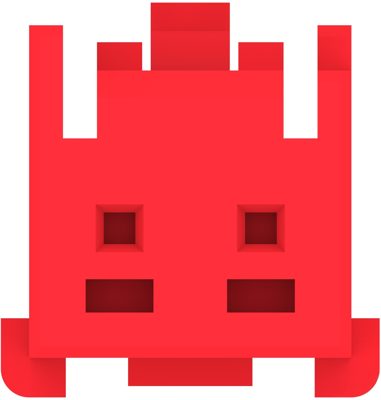

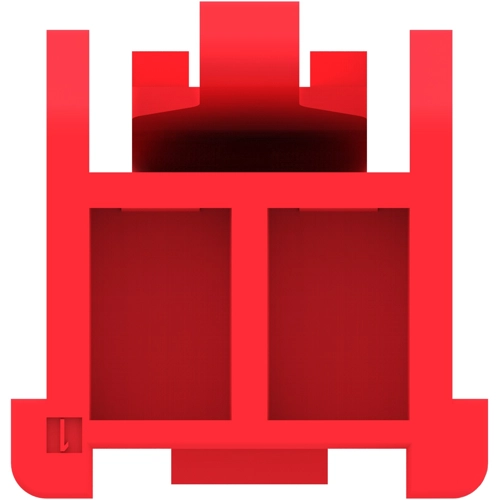

Plug housing, 2 pole, pitch 2.5 mm, straight, red, 2-1971793-3
Order No.: 34P8869
EAN: 4099889916843
MPN:
2-1971793-3
Unit Price (€ / pc.)
0.1345 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
13.45 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1345 €
250 pcs.
0.1238 €
500 pcs.
0.1142 €
1000 pcs.
0.1035 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-1971793-3, TE Connectivity
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: PA 66 GF
- Housing Color: red
- Number of positions: 2
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Colour | red | |
| Rated current | 3 A | |
| Connection | crimp connection | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Breakable | No | |
| Rated voltage | 50 V | |
| Contact type | socket | |
| Grid | 2.5 mm | |
| Version | plug housing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
