2-1969688-3 | TE Connectivity

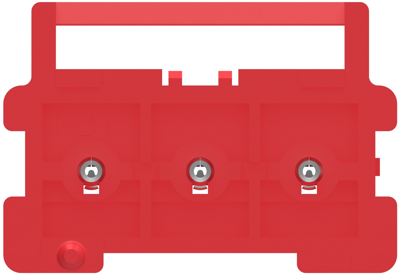

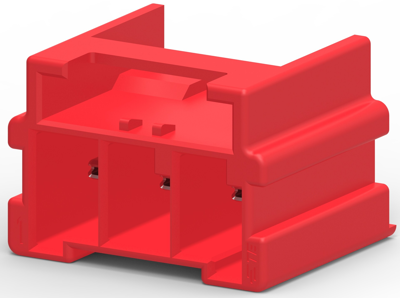

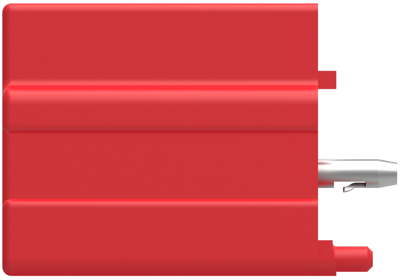

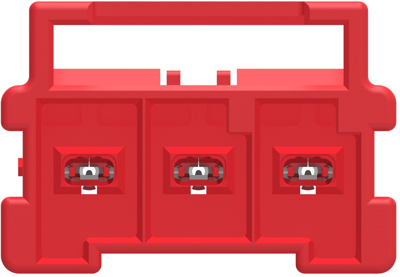

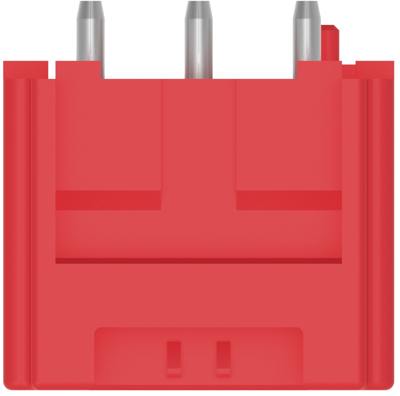

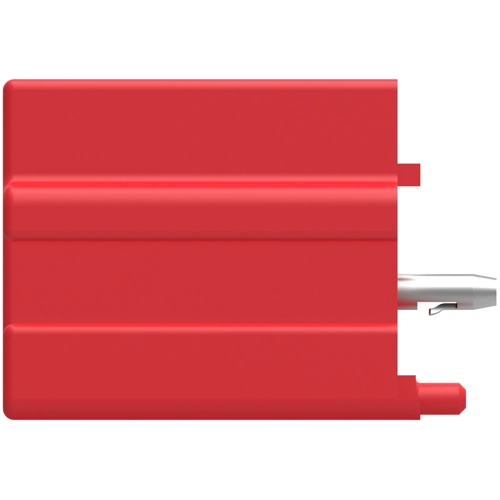

Socket header, 3 pole, pitch 6 mm, straight, red, 2-1969688-3
Unit Price (€ / pc.)
1.0710 € *
Available in 5 Days: 7,879 pcs. - if ordered today
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
10 pcs.
0.9996 €
25 pcs.
0.9282 €
50 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB header , 2-1969688-3, TE Connectivity
Rectangular power connector, Header, Receptacle, Wire-to-Board, 3 Position, 6 mm centerline, Printed circuit board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 19 A | |
| contact surface | tin-plated | |
| Colour | red | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | pre-tinned | |
| Grid | 6 mm | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Connection | solder connection | |
| Pin number | 3 pole | |
| Version | socket header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
