2-1969612-4 | TE Connectivity

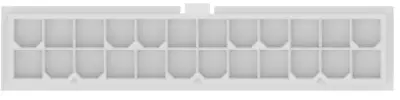

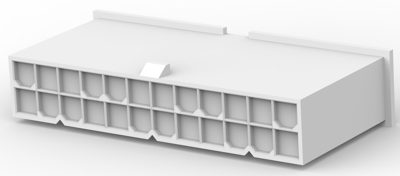

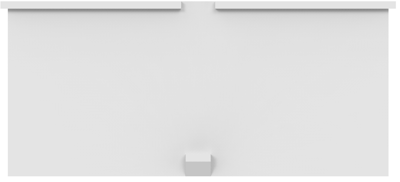

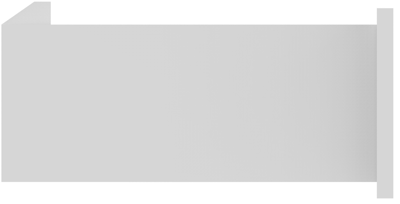

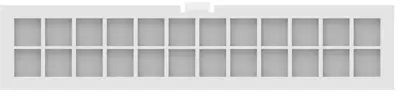

Plug housing, 24 pole, pitch 4.2 mm, straight, natural, 2-1969612-4
Order No.: 71P5466
EAN: 4099891726201
MPN:
2-1969612-4
Unit Price (€ / pc.)
0.6545 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6545 €
10 pcs.
0.6069 €
25 pcs.
0.5712 €
50 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 2-1969612-4, TE Connectivity
Rectangular power connector, Housing, Plug, Wire-to-Wire, 24 Position, 4.2 mm Centerline, Wire & Cable, UL 94V-0.
Features
- Integral housing locking latch
Applications
- Household appliances
- Desktop computers
- Indoor/outdoor lighting
- Industrial control
- HVAC control system
- Storage and networking systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Contact type | pin | |
| Pin number | 24 pole | |
| Grid | 4.2 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Number of rows | 2 | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
