2-1969604-4 | TE Connectivity

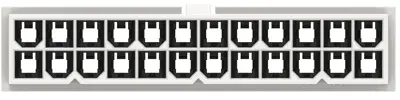

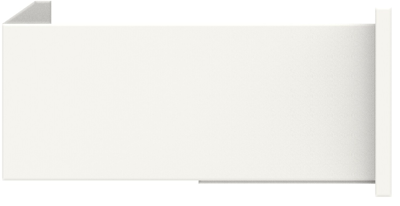

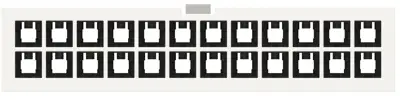

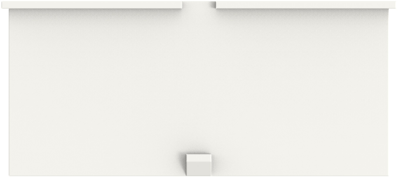

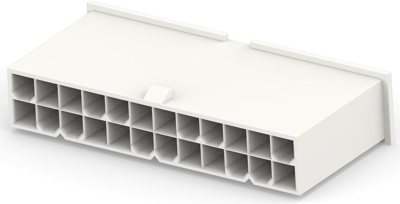

Plug housing, 24 pole, pitch 4.2 mm, straight, white, 2-1969604-4
Order No.: 71P5460
EAN: 4099891726140
MPN:
2-1969604-4
Unit Price (€ / pc.)
0.9044 € *
Available in 5 Days: 2,000 pcs. - if ordered today
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9044 €
10 pcs.
0.8330 €
25 pcs.
0.7854 €
50 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 2-1969604-4, TE Connectivity
Rectangular power connector, Housing, Plug, Wire-to-Wire, 24 Position, 4.2 mm Centerline, Wire & Cable, UL 94V-2, GWT 750°C (Without Flame).
Features
- Integral housing locking latch
Applications
- Household appliances
- Desktop computers
- Indoor/outdoor lighting
- Industrial control
- HVAC control system
- Storage and networking systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4.2 mm | |
| Contact type | pin | |
| Version | plug housing | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Colour | white | |
| Pin number | 24 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
