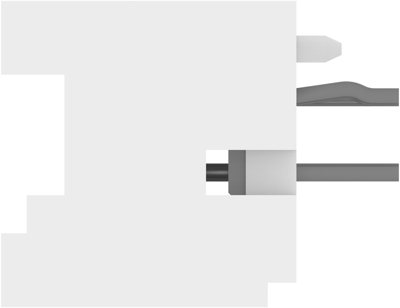

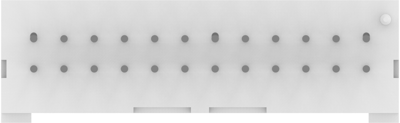

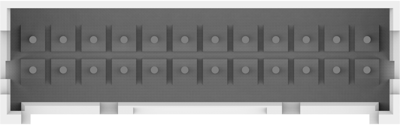

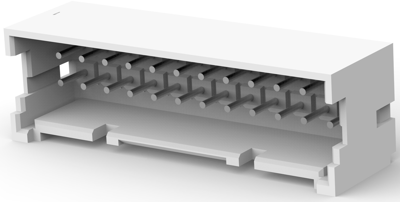

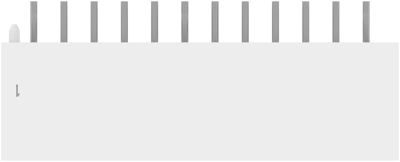

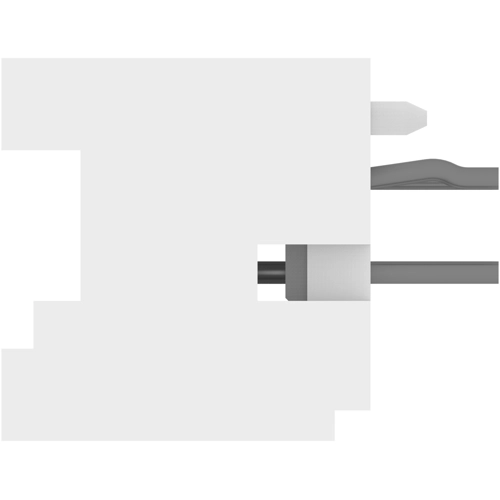

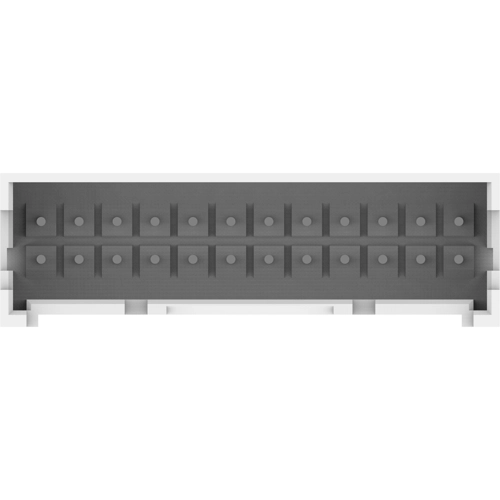

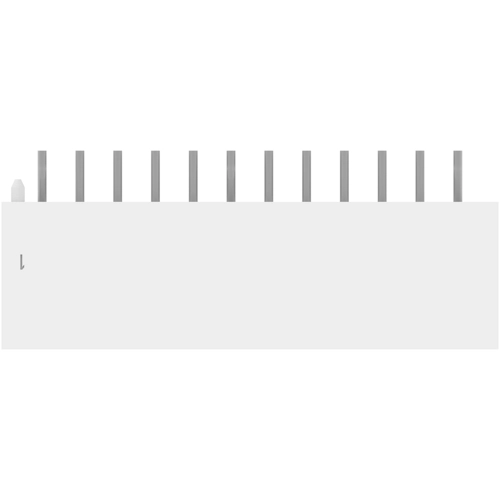

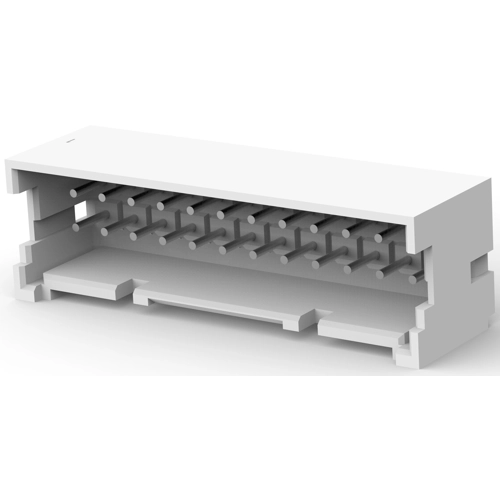

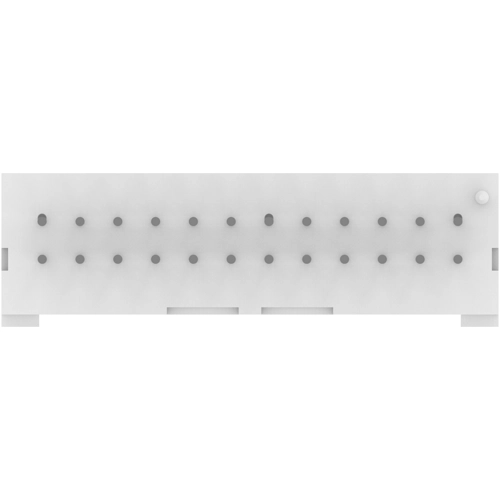

Wire-to-Board Headers and Receptacles, 2-1969543-4, TE Connectivity
PCB Connector Assembly Type: PCB Mount Header, Connector System: Wire-to-Board, Header Type: Shrouded, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Connector Contact Load Condition: Fully Loaded, PCB Mount Orientation: Vertical, Number of Positions: 24, Number of Rows: 2, Operating Voltage: 250 VAC, Contact Base Material: Brass, Contact Mating Area Plating Material: Tin, Contact Mating Area Plating Material Finish: Bright, Contact Mating Area Plating Material Thickness: 80 – 200 µm, Contact Type: Pin, Termination Post & Tail Length: 3.4 mm, Termination Method to Printed Circuit Board: Through Hole - Solder, Mating Retention Type: Latch, PCB Mount Alignment: With, Mating Retention: Without, PCB Mount Retention: With, Connector Mounting Type: Board Mount, Centerline (Pitch): 2.5 mm, Housing Color: Natural, Housing Material: Nylon, Row-to-Row Spacing: 2.5 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Power & Signal, Glow Wire Rating: Standard Part - Not Glow Wire, UL Flammability Rating: UL 94V-0, Packaging Quantity: 140, Packaging Method: Box
