2-1903328-2 | TE Connectivity

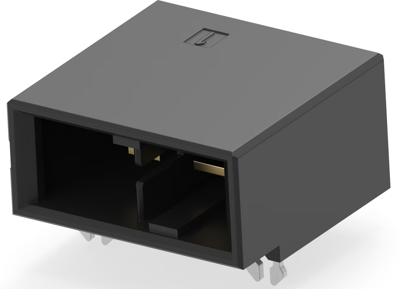

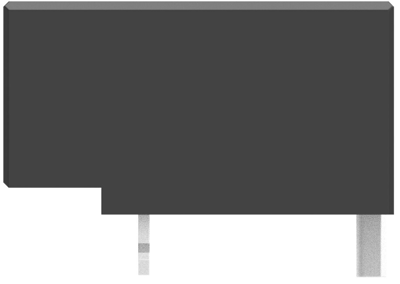

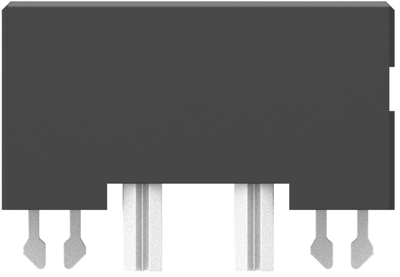

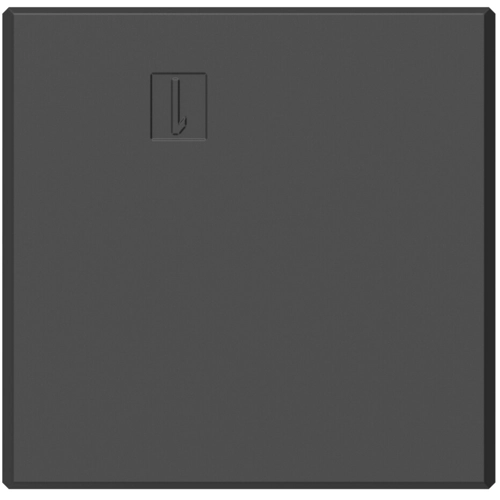

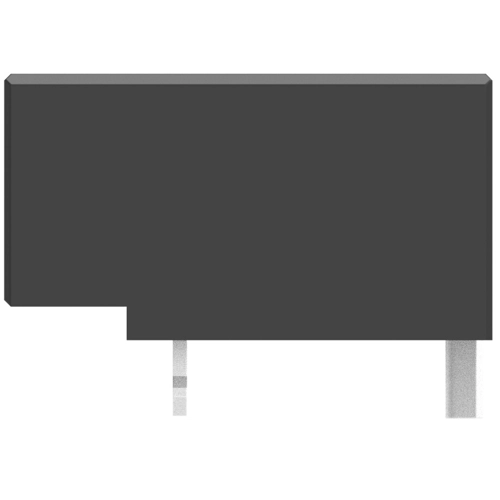

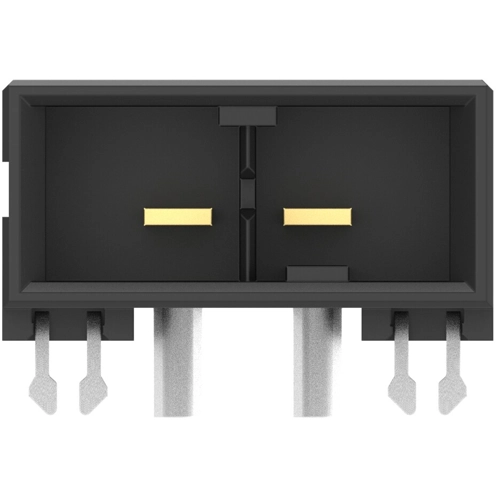

Pin header, 2 pole, pitch 6.35 mm, angled, black, 2-1903328-2
Unit Price (€ / pc.)
3.6057 € *
Standard delivery time from the manufacturer is: 23 Weeks
PCB Header, 2-1903328-2, TE Connectivity
PCB Mount header, Horizontal, Wire-to-Board, 2 Position, 6.35 mm Centerline, Fully shrouded, Gold.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 24 A | |
| Version | pin header | |
| Number of rows | 1 | |
| Connection | solder connection | |
| Contact type | pin | |
| Additional parts | equipped | |
| Grid | 6.35 mm | |
| Pin number | 2 pole | |
| Rated voltage | 600 V | |
| Orientation | angled | |
| contact surface | gold-plated | |
| Type of locking | Yes | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
