2-1903130-3 | TE Connectivity

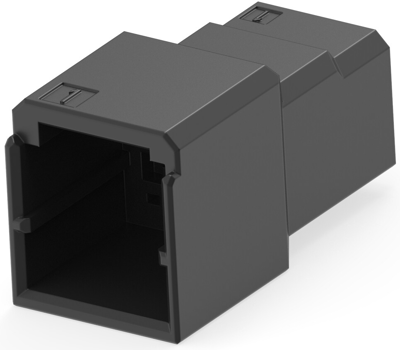

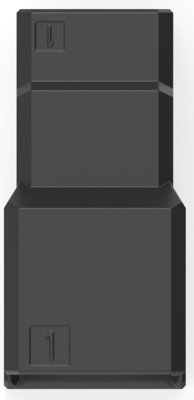

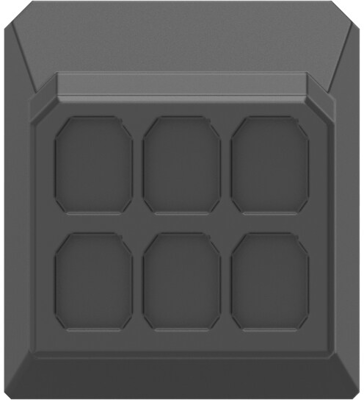

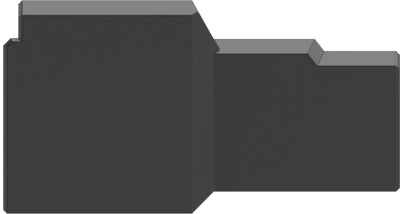

Plug housing, 6 pole, pitch 2.5 mm, straight, black, 2-1903130-3
Unit Price (€ / pc.)
0.6545 € *
Standard delivery time from the manufacturer is: 23 Weeks
PCB Connection System, 2-1903130-3, TE Connectivity
Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 6
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 2.5 mm
- Row-to-Row Spacing: 3.3 mm [0.129 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Breakable | No | |
| Contact type | tab | |
| Connection | crimp connection | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 6 pole | |
| Additional parts | unequipped | |
| Colour | black | |
| Version | plug housing |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
