2-1827864-3 | TE Connectivity

Socket header, 6 pole, pitch 2.5 mm, straight, black, 2-1827864-3

Order No.: 38P6827
EAN: 4099889973372
MPN:
2-1827864-3
Series: DYNAMIC

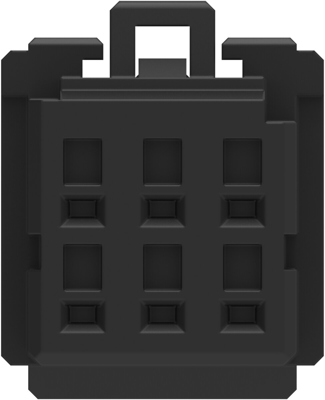

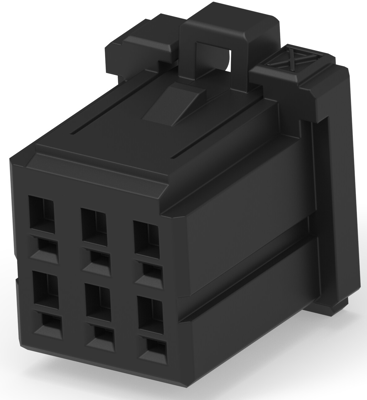

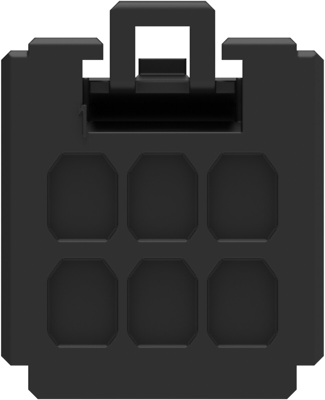

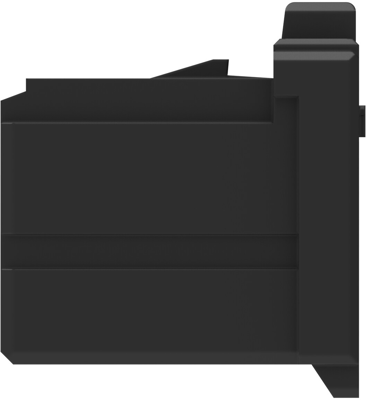

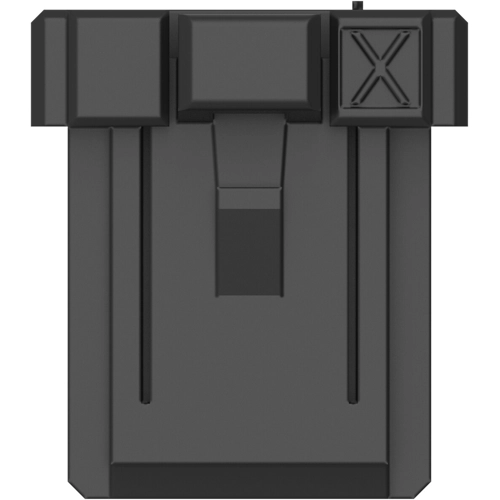

2-1827864-3 TE Connectivity PCB Connection Systems Image 1
2-1827864-3 TE Connectivity PCB Connection Systems Image 2
2-1827864-3 TE Connectivity PCB Connection Systems Image 3
2-1827864-3 TE Connectivity PCB Connection Systems Image 4
2-1827864-3 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9044 € *
Available in 5 Days: 3,430 pcs. - if ordered today
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9044 €
10 pcs.
0.8330 €
25 pcs.
0.7854 €
50 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-1827864-3, TE Connectivity

Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 6
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • Row-to-Row Spacing: 3.3 mm [0.129 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Grid 2.5 mm
Breakable No
Contact type socket
Version socket header
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour black
Pin number 6 pole
Connection crimp connection
Logistics
Property Value
Country of origin PL
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
