2-1827864-0 | TE Connectivity

Socket header, 20 pole, pitch 2.5 mm, straight, black, 2-1827864-0

Order No.: 38P6823
EAN: 4099889973334
MPN:
2-1827864-0
Series: DYNAMIC

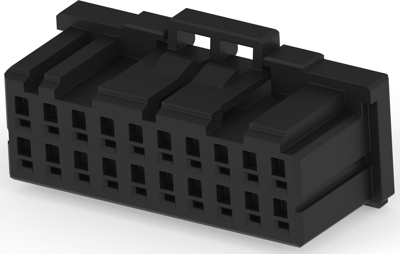

2-1827864-0 TE Connectivity PCB Connection Systems Image 1

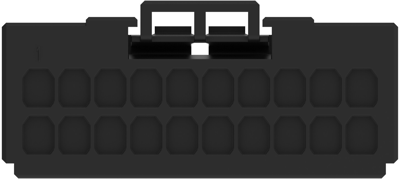

2-1827864-0 TE Connectivity PCB Connection Systems Image 2

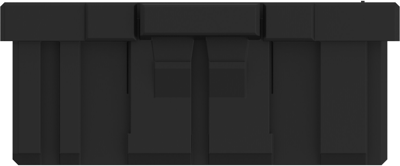

2-1827864-0 TE Connectivity PCB Connection Systems Image 3

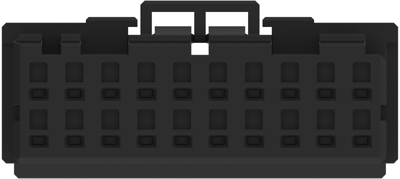

2-1827864-0 TE Connectivity PCB Connection Systems Image 4
2-1827864-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.7489 € *
Available in 5 Days: 1,640 pcs. - if ordered today
Total Price:
2.75 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7489 €
10 pcs.
2.5466 €
25 pcs.
2.3800 €
50 pcs.
2.1658 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-1827864-0, TE Connectivity

Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 20 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 20
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • Row-to-Row Spacing: 3.3 mm [0.129 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Breakable No
Rated voltage 250 V
Version socket header
Number of rows 2
Orientation straight
Additional parts unequipped
Pin number 20 pole
Grid 2.5 mm
Type of locking Yes
Contact type socket
Colour black
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
