2-1747052-2 | TE Connectivity

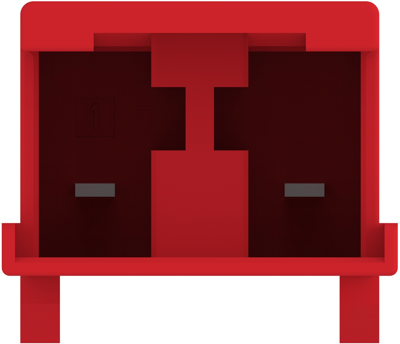

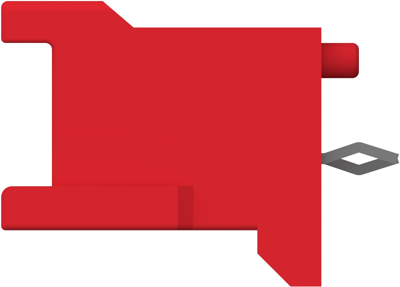

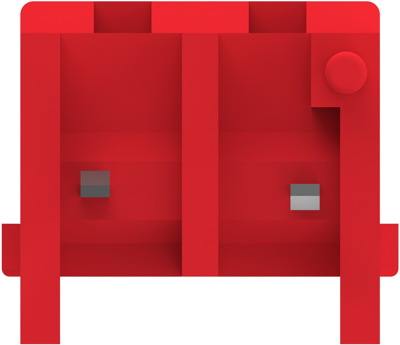

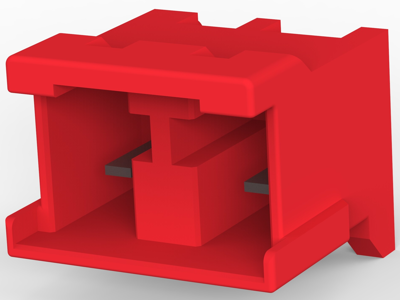

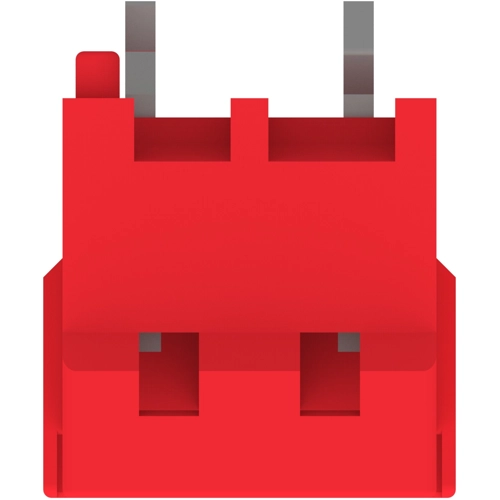

Socket header, 2 pole, pitch 7.92 mm, straight, red, 2-1747052-2
Unit Price (€ / pc.)
0.7140 € *
Available in 5 Days: 1,750 pcs. - if ordered today
Total Price:
214.20 € *
Price list
Quantity
Price per unit*
300 pcs.
0.7140 €
650 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket header, 2-1747052-2, TE Connectivity
Rectangular power connector, Header, Receptacle, Wire-to-Board, 2 Position, 7.92 mm Centerline, Printed circuit board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| contact surface | tin-plated | |
| Colour | red | |
| Additional parts | equipped | |
| Contact type | tab | |
| Connection plating | tin-plated | |
| Grid | 7.92 mm | |
| Orientation | straight | |
| Rated voltage | 300 V | |
| Connection | solder connection | |
| Pin number | 2 pole | |
| Version | socket header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
