2-1744417-0 | TE Connectivity

Socket housing, 20 pole, pitch 7.8 mm, straight, natural, 2-1744417-0

Order No.: 34P7399
EAN: 4099889915754
MPN:
2-1744417-0

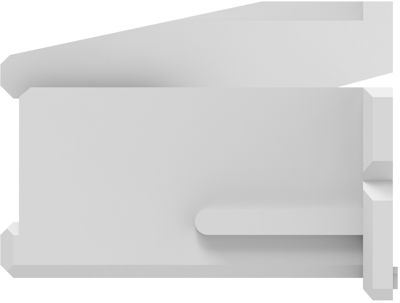

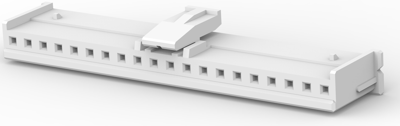

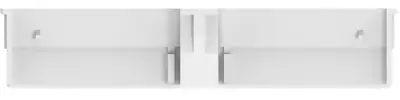

2-1744417-0 TE Connectivity PCB Connection Systems Image 1
2-1744417-0 TE Connectivity PCB Connection Systems Image 2
2-1744417-0 TE Connectivity PCB Connection Systems Image 3
2-1744417-0 TE Connectivity PCB Connection Systems Image 4
2-1744417-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.4046 €
50 pcs.
0.3570 €
100 pcs.
0.3094 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-1744417-0, TE Connectivity

Wire-to-Board, Wire & Cable, 20 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 20
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Rated voltage 250 V
Version socket housing
Breakable No
Connection crimp connection
Contact type socket
Additional parts unequipped
Pin number 20 pole
Colour natural
Type of locking Yes
Orientation straight
Number of rows 1
Grid 7.8 mm
Logistics
Country of origin KR
Customs tariff number 85366910
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
