2-1565083-3 | TE Connectivity

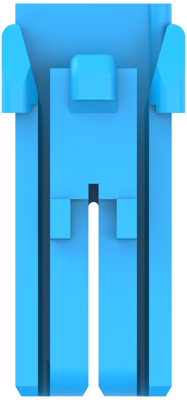

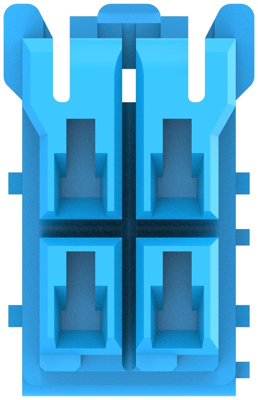

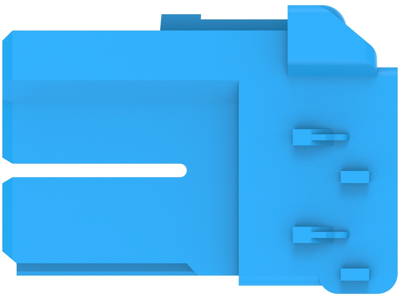

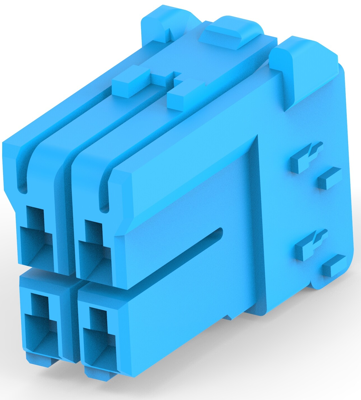

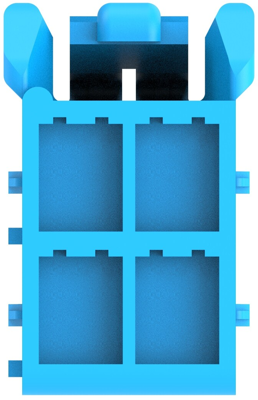

Plug housing, 4 pole, pitch 3.5 mm, straight, blue, 2-1565083-3
Order No.: 34P8811
EAN: 4099889916607
MPN:
2-1565083-3
Unit Price (€ / pc.)
0.1488 € *
Standard delivery time from the manufacturer is: 19 Weeks
PCB Connection System, 2-1565083-3, TE Connectivity
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Nylon 6/6
- Housing Color: blue
- Number of positions: 4
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Centerline (Pitch): 3.5 mm
- Row-to-Row Spacing: 4.8 mm [0.189 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Pin number | 4 pole | |
| Breakable | No | |
| Type of locking | Yes | |
| Rated voltage | 300 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 3.5 mm | |
| Number of rows | 1 | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Colour | blue |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
