1981823-1 | TE Connectivity

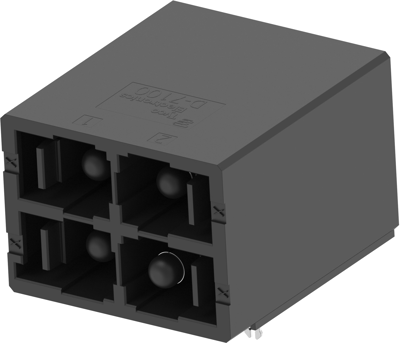

Pin header, 4 pole, pitch 16 mm, angled, black, 1981823-1
Unit Price (€ / pc.)
40.1982 € *
Available in 5 Days: 162 pcs. - if ordered today
Total Price:
40.20 € *
Price list
Quantity
Price per unit*
1 pcs.
40.1982 €
5 pcs.
38.1157 €
10 pcs.
35.6643 €
25 pcs.
32.5108 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Header, 1981823-1, TE Connectivity
PCB Mount header, Horizontal, Wire-to-Board, 4 Position, 16 mm Centerline, Silver, Through Hole-Solder, Black.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 16 mm | |
| Pin number | 4 pole | |
| Colour | black | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 65 A | |
| Version | pin header | |
| Connection | solder connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 630 V | |
| contact surface | silver-plated | |
| Orientation | angled | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
