1971598-1 | TE Connectivity

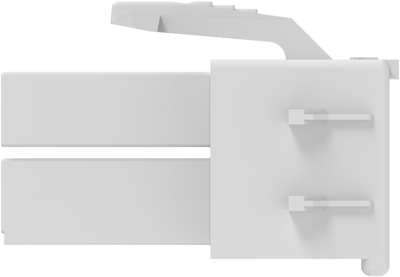

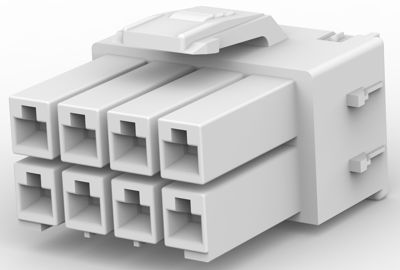

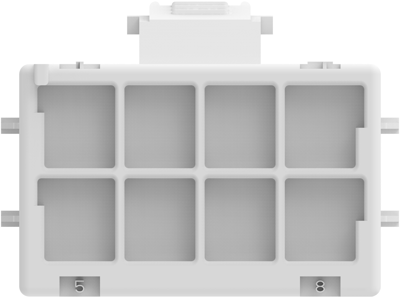

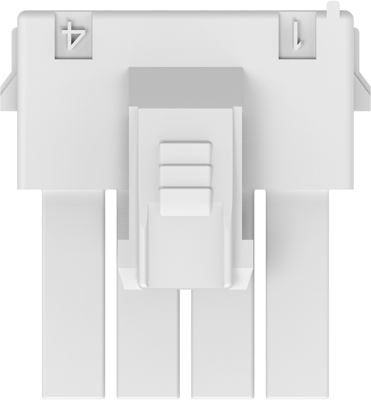

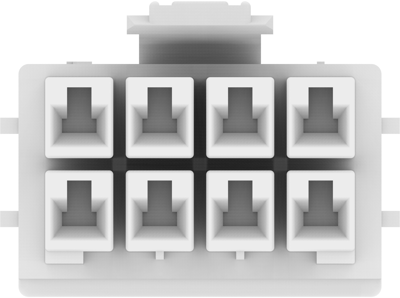

Socket header, 8 pole, pitch 3.96 mm, straight, natural, 1971598-1
Order No.: 34P6186
EAN: 4099889911046
MPN:
1971598-1
Unit Price (€ / pc.)
0.3927 € *
Standard delivery time from the manufacturer is: 19 Weeks
PCB Connection System, 1971598-1, TE Connectivity
Wire-to-Wire, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: PA 66
- Housing Color: natural
- Number of positions: 8
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Centerline (Pitch): 3.96 mm
- Row-to-Row Spacing: 4.6 mm [0.181 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Pin number | 8 pole | |
| Breakable | No | |
| Type of locking | Yes | |
| Rated voltage | 300 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 3.96 mm | |
| Number of rows | 2 | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated current | 3 A | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
