1971151-2 | TE Connectivity

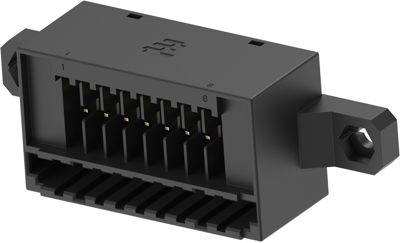

Pin header, 34 pole, pitch 3.5 mm, straight, black, 1971151-2
Unit Price (€ / pc.)
33.8317 € *
Standard delivery time from the manufacturer is: 26 Weeks
PCB Connection System, 1971151-2, TE Connectivity
Wire-to-Panel, Standard Rectangular Connectors, 34 Position
Technical Data
- Contact Type: Male
- Housing Material: PBT
- Housing Color: black
- Number of positions: 34
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 3.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 34 pole | |
| Grid | 3.5 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Type of locking | No | |
| Rated voltage | 150 V | |
| Rated current | 5 A | |
| Number of rows | 4 | |
| Breakable | No | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
