1969804-1 | TE Connectivity
Socket header, 4 pole, pitch 6.35 mm, straight, natural, 1969804-1
Unit Price (€ / pc.)
0.5236 € *
Available in 5 Days: 2,958 pcs. - if ordered today
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5236 €
10 pcs.
0.4879 €
25 pcs.
0.4522 €
50 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale

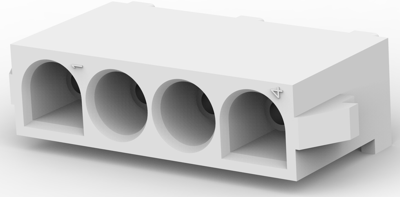

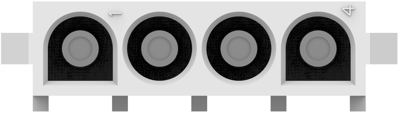

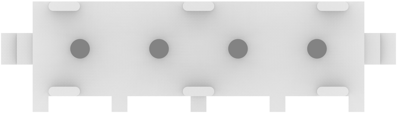

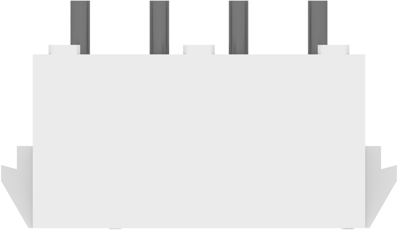

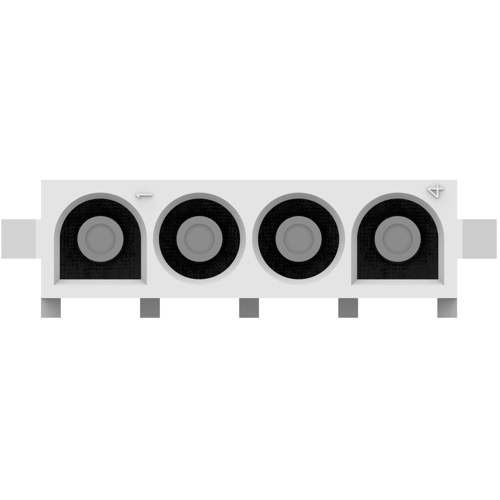

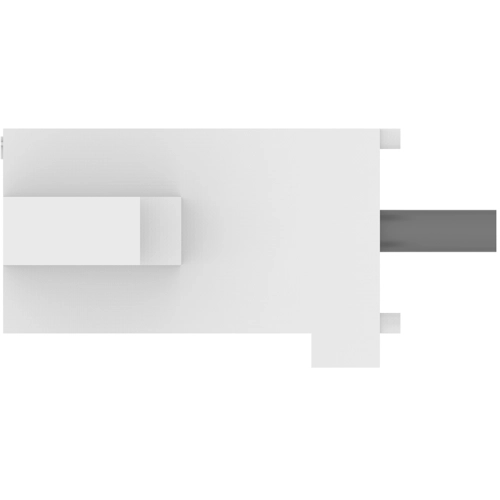

Socket header, 1969804-1, TE Connectivity
Rectangular power connector, Header, Receptacle, Wire-to-Board, 4 Position, 6.35 mm centerline, Printed circuit board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 6.35 mm | |
| Pin number | 4 pole | |
| Colour | natural | |
| Connection plating | pre-tinned | |
| Contact type | socket | |
| Rated current | 12 A | |
| Version | socket header | |
| Connection | solder connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 600 V | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
