1969798-1 | TE Connectivity

Pin header, 2 pole, pitch 6.35 mm, angled, natural, 1969798-1

Order No.: 35P4707
EAN: 4099889933932
MPN:
1969798-1

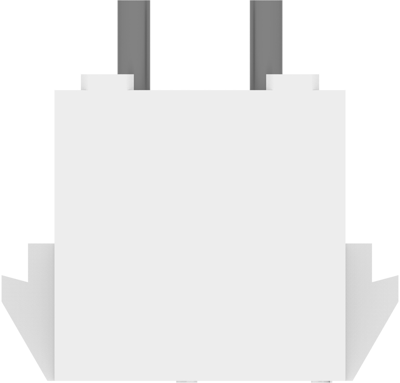

1969798-1 TE Connectivity PCB Connection Systems Image 1

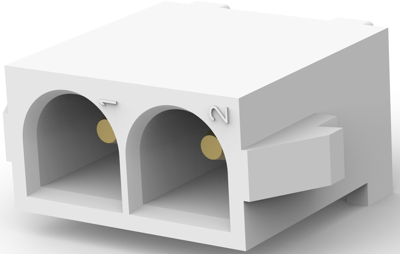

1969798-1 TE Connectivity PCB Connection Systems Image 2

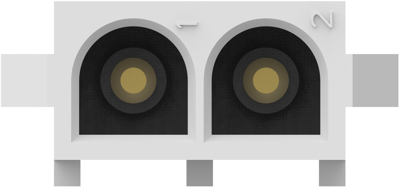

1969798-1 TE Connectivity PCB Connection Systems Image 3

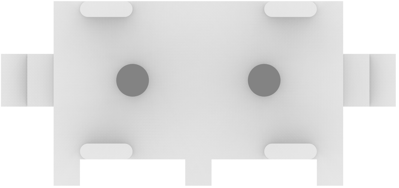

1969798-1 TE Connectivity PCB Connection Systems Image 4

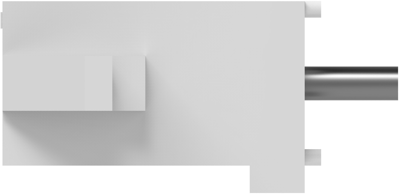

1969798-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7497 € *
Available in 5 Days: 3,000 pcs. - if ordered today
Total Price:
0.75 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7497 €
10 pcs.
0.6545 €
50 pcs.
0.5950 €
100 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1969798-1, TE Connectivity

Wire-to-Board, Printed Circuit Board, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
Technical specifications
Version pin header
Contact type pin
Pin number 2 pole
Grid 6.35 mm
Connection PCB connection
Orientation angled
Type of locking No
contact surface tin-plated
Connection plating tin-plated
Rated voltage 150 V
Rated current 12 A
Additional parts equipped
Number of rows 1
Breakable No
Colour natural
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
