1969730-8 | TE Connectivity

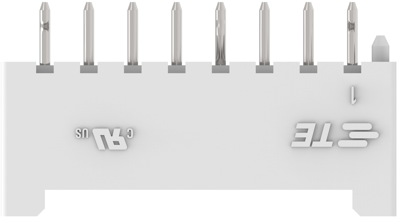

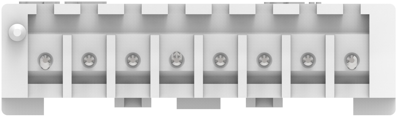

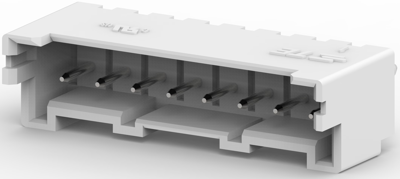

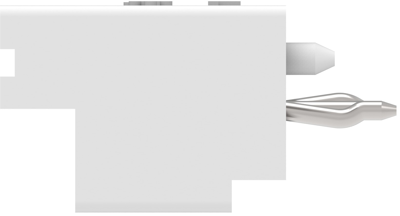

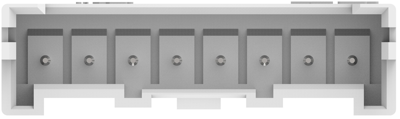

Pin header, 8 pole, pitch 2.5 mm, straight, natural, 1969730-8
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3808 €
10 pcs.
0.3451 €
25 pcs.
0.3213 €
50 pcs.
0.2951 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Header, 1969730-8, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 8 Position, 2.5 mm Centerline, Fully shrouded, Tin, Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Type of locking | Yes | |
| Pin number | 8 pole | |
| Colour | natural | |
| contact surface | tin-plated | |
| Connection | solder connection | |
| Grid | 2.5 mm | |
| Rated voltage | 250 V | |
| Rated current | 4.2 A | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
