1969613-2 | TE Connectivity

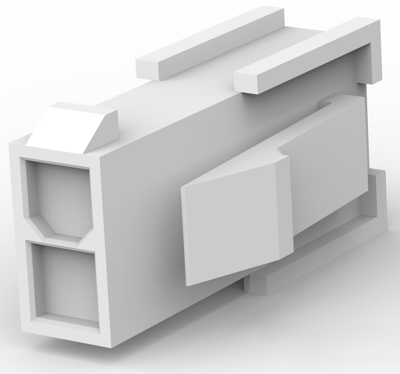

Plug housing, 2 pole, pitch 4.2 mm, straight, natural, 1969613-2
Order No.: 35P5508
EAN: 4099889939255
MPN:
1969613-2
Unit Price (€ / pc.)
0.1190 € *
Available in 5 Days: 9,000 pcs. - if ordered today
PCB Connection System, 1969613-2, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 2
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Pin number | 2 pole | |
| Breakable | No | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Contact type | pin | |
| Grid | 4.2 mm | |
| Number of rows | 2 | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
