1969605-8 | TE Connectivity

Plug housing, 8 pole, pitch 4.2 mm, straight, white, 1969605-8

Order No.: 35P5571
EAN: 4099889939781
MPN:
1969605-8

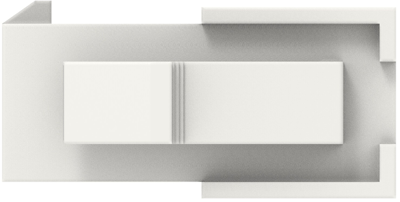

1969605-8 TE Connectivity PCB Connection Systems Image 1

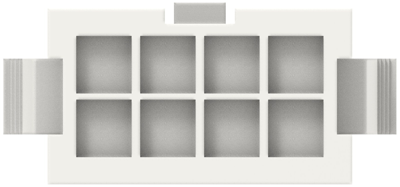

1969605-8 TE Connectivity PCB Connection Systems Image 2

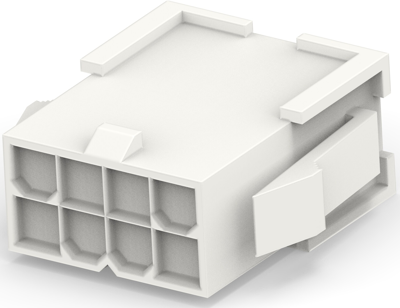

1969605-8 TE Connectivity PCB Connection Systems Image 3

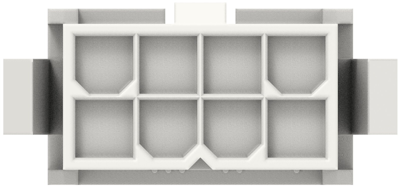

1969605-8 TE Connectivity PCB Connection Systems Image 4

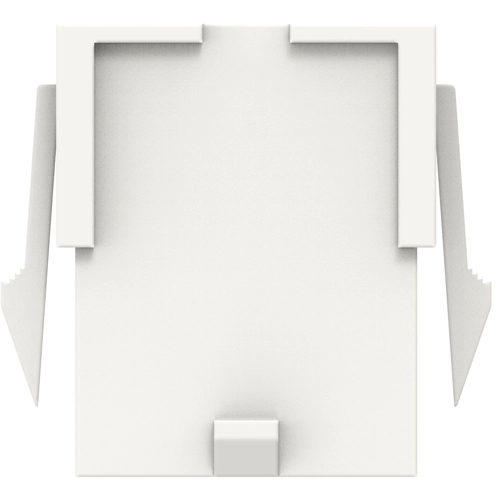

1969605-8 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3058 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1,376.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
4500 pcs.
0.3058 €

PCB Connection System, 1969605-8, TE Connectivity

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 8 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Polyamide
  • Housing Color: white
  • Number of positions: 8
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
Technical specifications
Colour white
Breakable No
Type of locking Yes
Grid 4.2 mm
Pin number 8 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin DE
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
