1969604-8 | TE Connectivity

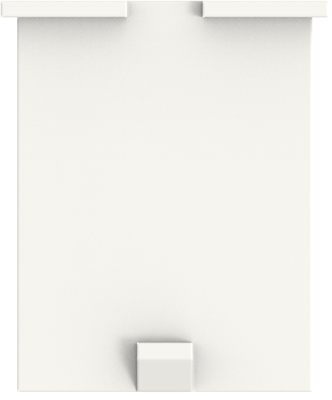

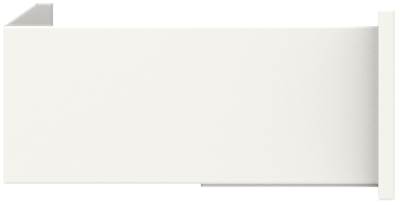

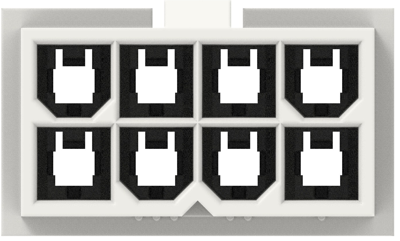

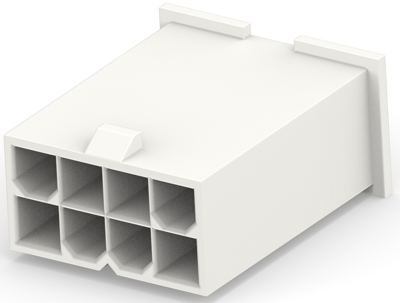

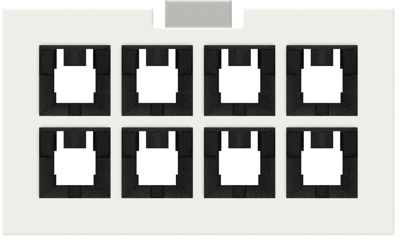

Plug housing, 8 pole, pitch 4.2 mm, straight, white, 1969604-8
Order No.: 71P3939
EAN: 4099891723729
MPN:
1969604-8
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Available in 5 Days: 7,811 pcs.
Leadtime: 20 Weeks **
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4522 €
10 pcs.
0.3927 €
50 pcs.
0.3451 €
100 pcs.
0.3094 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug housing, 1969604-8, TE Connectivity
The 1969604-8 helps ensure that the contact is fully seated in the housing and helps secure contacts in housings, protecting against back-out.
Features
- Integral housing locking latch
Applications
- Household appliances
- Desktop computers
- Indoor/outdoor lighting
- Security systems
- Industrial Control
- Storage and networking systems
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | Steckergehäuse | |
| Colour | weiß | |
| Contact type | Stift | |
| Rated voltage | 600 V | |
| Rated current | 9 A | |
| Orientation | gerade | |
| Pin number | 8-polig | |
| Grid | 4.2 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
