1969603-4 | TE Connectivity

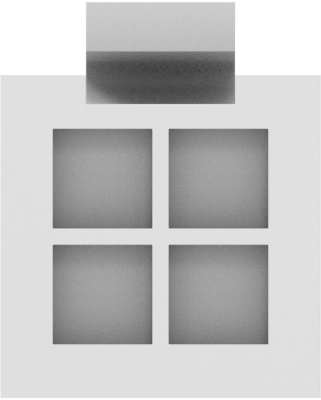

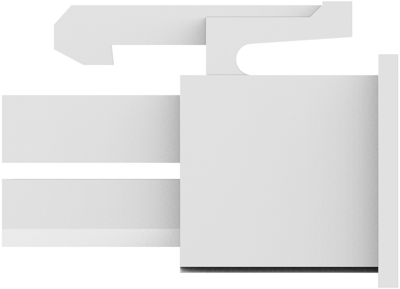

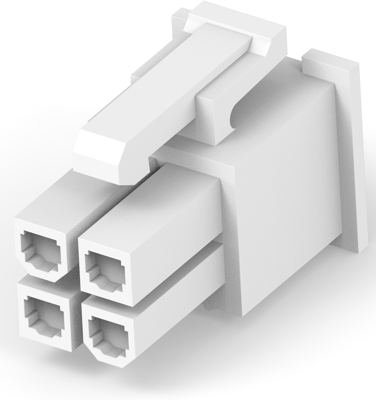

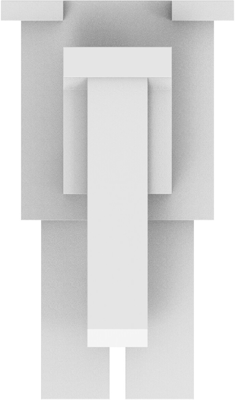

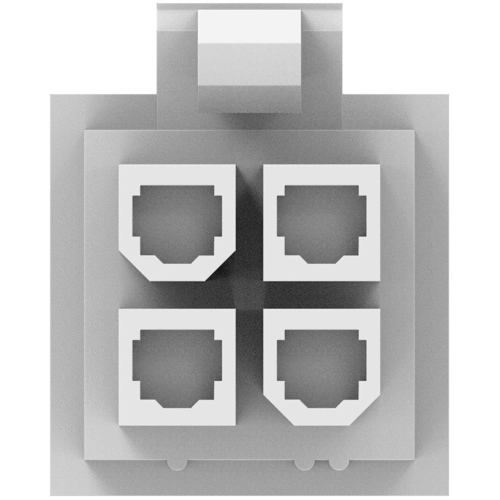

Socket header, 4 pole, pitch 4.2 mm, straight, white, 1969603-4
Order No.: 35P5534
EAN: 4099889939477
MPN:
1969603-4
Unit Price (€ / pc.)
0.1428 € *
Standard delivery time from the manufacturer is: 20 Weeks
PCB Connection System, 1969603-4, TE Connectivity
Wire-to-Board, Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyamide
- Housing Color: white
- Number of positions: 4
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Additional parts | unequipped | |
| Contact type | socket | |
| Grid | 4.2 mm | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Connection | crimp connection | |
| Breakable | No | |
| Pin number | 4 pole | |
| Version | socket header | |
| Type of locking | Yes | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
