1969599-8 | TE Connectivity

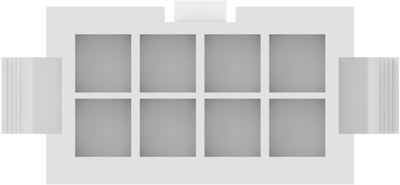

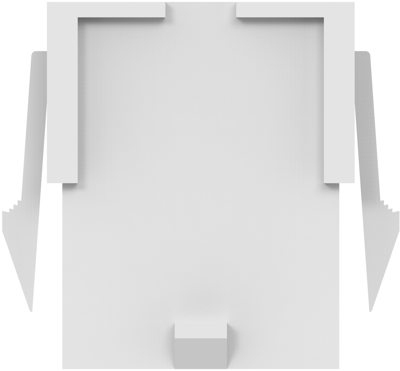

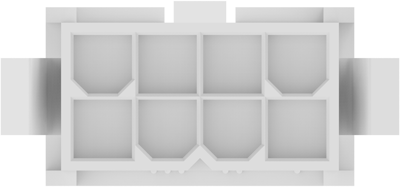

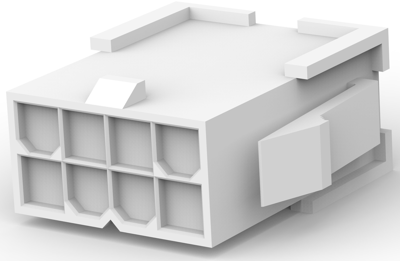

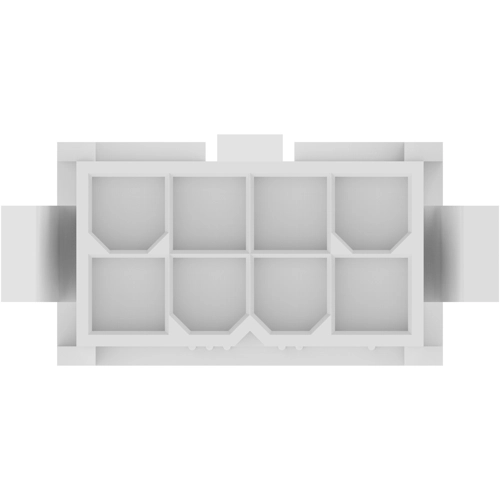

Plug housing, 8 pole, pitch 4.2 mm, straight, natural, 1969599-8
Order No.: 35P5574
EAN: 4099889939811
MPN:
1969599-8
Unit Price (€ / pc.)
0.2011 € *
Available in 5 Days: 7,727 pcs. - if ordered today
Total Price:
20.11 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2011 €
250 pcs.
0.1856 €
500 pcs.
0.1725 €
1000 pcs.
0.1559 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1969599-8, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 8
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4.2 mm | |
| Breakable | No | |
| Contact type | pin | |
| Version | plug housing | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Colour | natural | |
| Pin number | 8 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
