1969590-4 | TE Connectivity

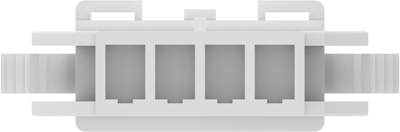

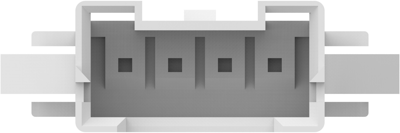

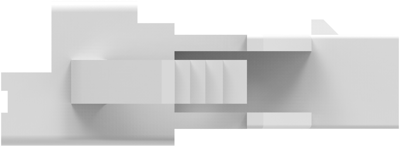

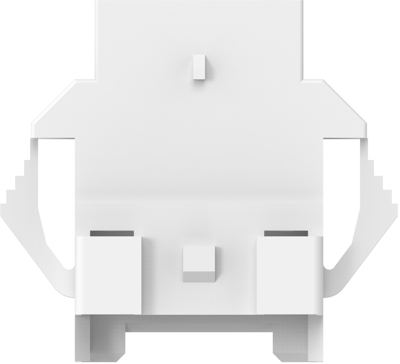

Socket housing, 4 pole, pitch 2.5 mm, straight, white, 1969590-4
Unit Price (€ / pc.)
0.1666 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
16.66 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1666 €
250 pcs.
0.1535 €
500 pcs.
0.1428 €
1000 pcs.
0.1285 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1969590-4, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon - GF
- Housing Color: white
- Number of positions: 4
- Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
- Rated current: 7.5 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Breakable | No | |
| Contact type | pin | |
| Version | socket housing | |
| Rated current | 7.5 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | white | |
| Pin number | 4 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BE |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
