1969588-5 | TE Connectivity

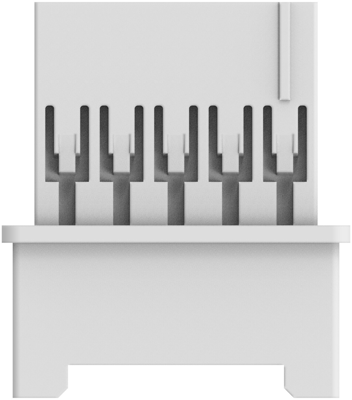

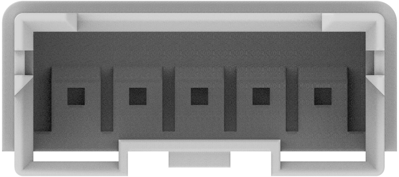

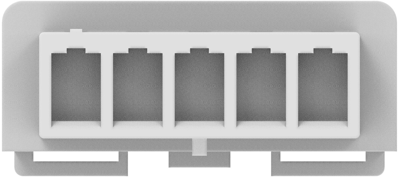

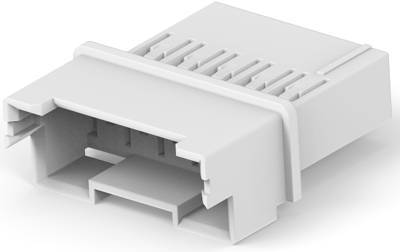

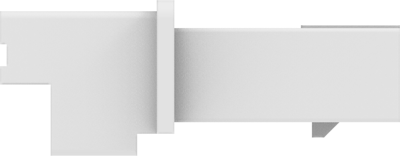

Socket housing, 5 pole, pitch 2.5 mm, straight, natural, 1969588-5
Order No.: 34P7451
EAN: 4099889916089
MPN:
1969588-5
Unit Price (€ / pc.)
0.1392 € *
Available: 0 pcs.
Available in 5 Days: 20,000 pcs.
Leadtime: 23 Weeks **
PCB Connection System, 1969588-5, TE Connectivity
Wire-to-Wire, Wire & Cable, 5 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon - GF
- Housing Color: natural
- Number of positions: 5
- Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
- Rated current: 7.5 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Buchsengehäuse | |
| Additional parts | unbestückt | |
| Breakable | No | |
| Colour | natur | |
| Contact type | Stift | |
| Rated voltage | 250 V | |
| Rated current | 7.5 A | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Grid | 2.5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
