1969442-8 | TE Connectivity

Socket housing, 8 pole, pitch 2.5 mm, straight, natural, 1969442-8

Order No.: 34P7419
EAN: 4099889915952
MPN:
1969442-8
Series: Economy Power

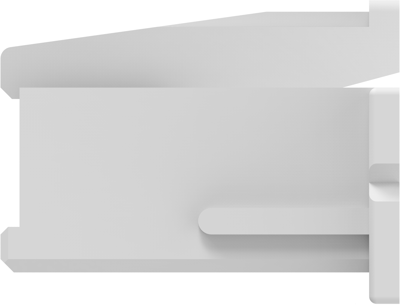

1969442-8 TE Connectivity PCB Connection Systems Image 1

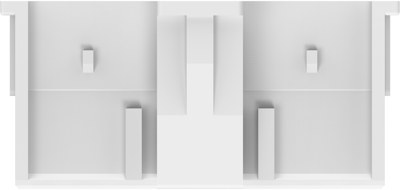

1969442-8 TE Connectivity PCB Connection Systems Image 2

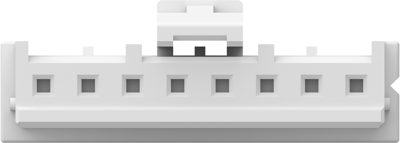

1969442-8 TE Connectivity PCB Connection Systems Image 3

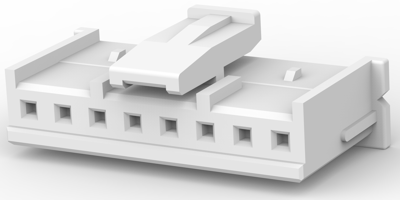

1969442-8 TE Connectivity PCB Connection Systems Image 4

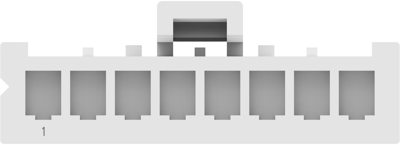

1969442-8 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1047 € *
Available in 5 Days: 20,000 pcs. - if ordered today
Total Price:
10.47 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1047 €
250 pcs.
0.0964 €
500 pcs.
0.0893 €
1000 pcs.
0.0809 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1969442-8, TE Connectivity

Wire-to-Board, Wire & Cable, 8 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon - GF
  • Housing Color: natural
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 4.5 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
Grid 2.5 mm
Breakable No
Contact type socket
Version socket housing
Rated current 4.5 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour natural
Pin number 8 pole
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
