1969442-7 | TE Connectivity

Socket housing, 7 pole, pitch 2.5 mm, straight, natural, 1969442-7

Order No.: 34P7418
EAN: 4099889915945
MPN:
1969442-7
Series: Economy Power

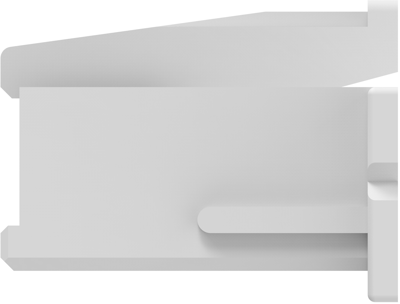

1969442-7 TE Connectivity PCB Connection Systems Image 1

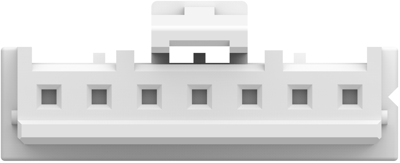

1969442-7 TE Connectivity PCB Connection Systems Image 2

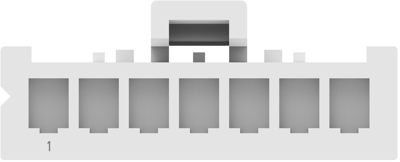

1969442-7 TE Connectivity PCB Connection Systems Image 3

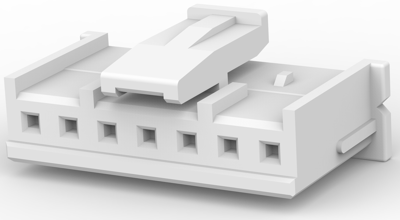

1969442-7 TE Connectivity PCB Connection Systems Image 4

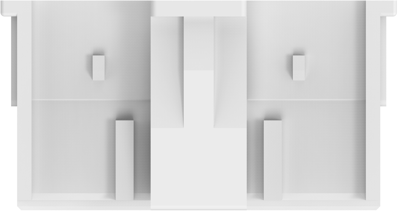

1969442-7 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2344 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
0.2344 €

PCB Connection System, 1969442-7, TE Connectivity

Wire-to-Board, Wire & Cable, 7 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon - GF
  • Housing Color: natural
  • Number of positions: 7
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 4.5 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour natural
Breakable No
Type of locking Yes
Rated current 4.5 A
Grid 2.5 mm
Pin number 7 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin US
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
