1969442-2 | TE Connectivity

Socket housing, 2 pole, pitch 2.5 mm, straight, natural, 1969442-2

Order No.: 34P7412
EAN: 4099889915884
MPN:
1969442-2
Series: Economy Power

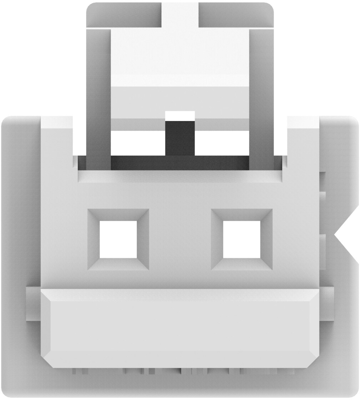

1969442-2 TE Connectivity PCB Connection Systems Image 1

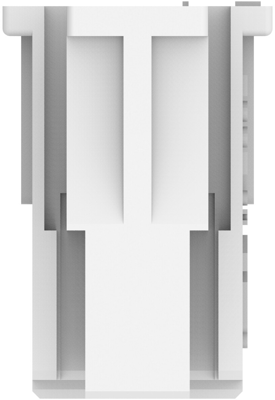

1969442-2 TE Connectivity PCB Connection Systems Image 2

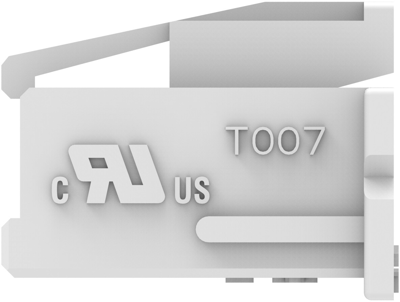

1969442-2 TE Connectivity PCB Connection Systems Image 3

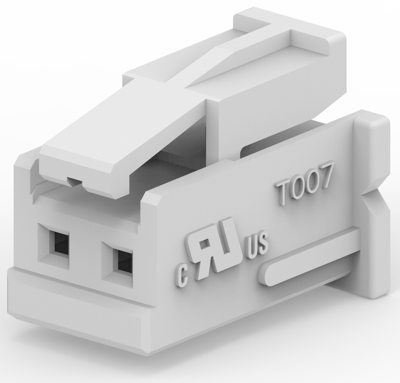

1969442-2 TE Connectivity PCB Connection Systems Image 4

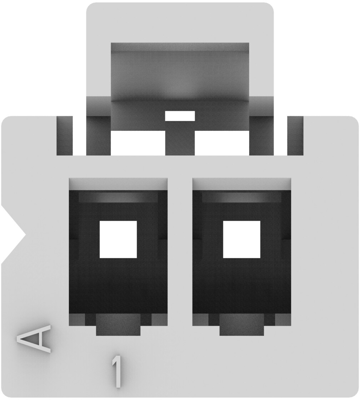

1969442-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.0619 € *
Available in 5 Days: 50,400 pcs. - if ordered today
Total Price:
259.90 € *
Price list
Quantity
Price per unit*
4200 pcs.
0.0619 €
9000 pcs.
0.0536 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1969442-2, TE Connectivity

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon - GF
  • Housing Color: natural
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 4.5 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour natural
Breakable No
Type of locking Yes
Rated current 4.5 A
Grid 2.5 mm
Pin number 2 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
