1939984-1 | TE Connectivity

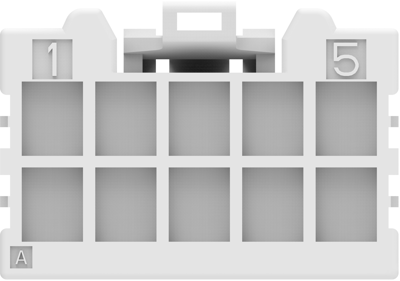

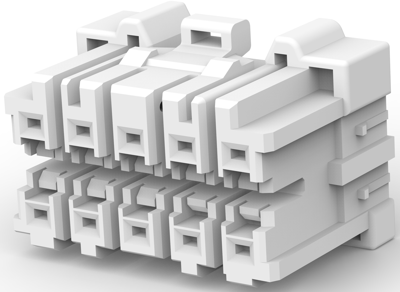

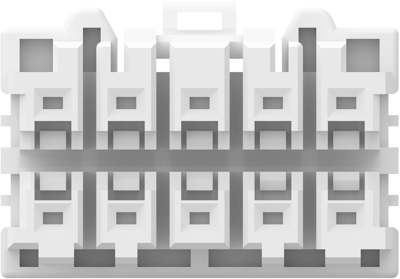

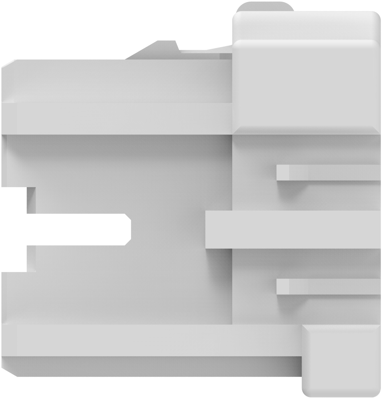

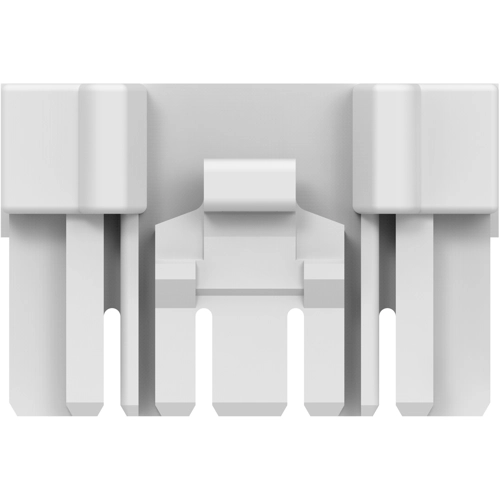

Plug housing, 10 pole, pitch 3.3 mm, straight, natural, 1939984-1
Unit Price (€ / pc.)
0.2475 € *
Available in 5 Days: 2,687 pcs. - if ordered today
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2475 €
10 pcs.
0.2297 €
25 pcs.
0.2142 €
50 pcs.
0.1952 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing, 1939984-1, TE Connectivity
Rectangular power connector, Housing, Plug, Wire-to-Board, 10 Position, 3.3 mm Centerline, Wire & Cable, UL 94V-0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 4 A | |
| contact surface | tin-plated | |
| Colour | natural | |
| Additional parts | unequipped | |
| Contact type | socket | |
| Grid | 3.3 mm | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Connection | crimp connection | |
| Pin number | 10 pole | |
| Version | plug housing | |
| Type of locking | Yes | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
