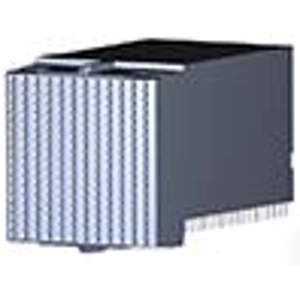

Board-to-Board Headers and Receptacles, 1934633-1, TE Connectivity
PCB Connector Assembly Type: PCB Mount Receptacle, Connector System: Board-to-Board, Header Type: Header Only, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Signal Positions: 144, PCB Mount Orientation: Right Angle, Number of Positions: 216, Board-to-Board Configuration: Co-Planar, Operating Voltage: 250 VAC, Data Rate: 10 Gb/s, Contact Base Material: Phosphor Bronze, Contact Mating Area Plating Material: Gold, Contact Mating Area Plating Material Thickness: .76 µm, Contact Type: Receptacle, Contact Current Rating (Max): .5 A, Termination Post & Tail Length: 2.2 mm, Termination Method to Printed Circuit Board: Through Hole - Press-Fit, PCB Mount Retention Type: Action/Compliant Tail, Mating Alignment: With, Mating Alignment Type: Guide Slot, PCB Mount Retention: With, PCB Mount Alignment: Without, Centerline (Pitch): 2.1 mm, Housing Color: Black, Housing Material: LCP (Liquid Crystal Polymer), Connector Width: 42.81 mm, Row-to-Row Spacing: 1.4 mm, PCB Thickness (Recommended): 1.57 mm, Operating Temperature Range: -65 – 90 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Agency/Standard: UL, UL File Number: E28476, UL Rating: Recognized, Packaging Method: Tube
