1934299-1 | TE Connectivity

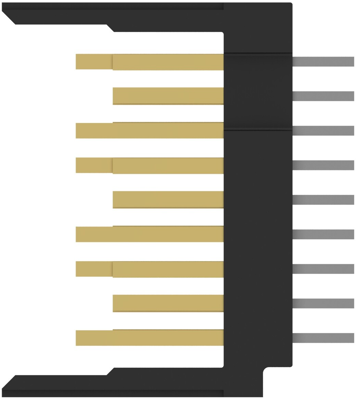

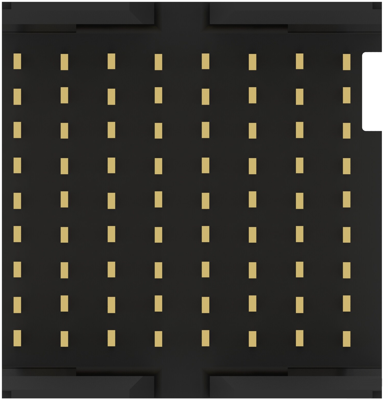

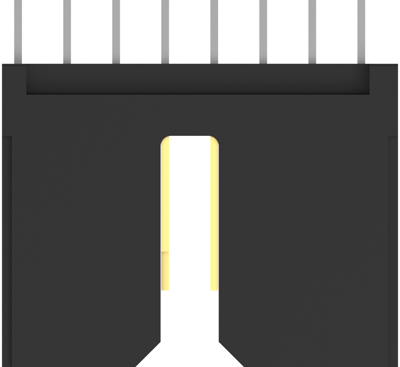

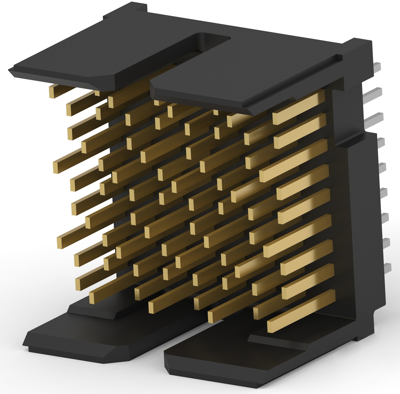

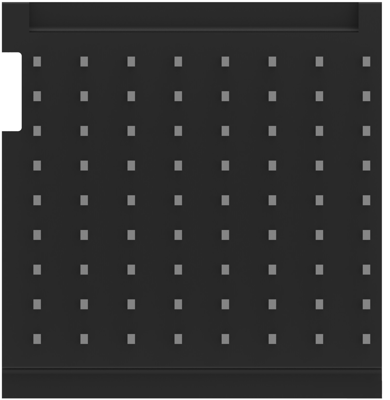

Pin header, 72 pole, pitch 1.9 mm, straight, black, 1934299-1
Order No.: 37P3744
EAN: 4099889954371
MPN:
1934299-1
Unit Price (€ / pc.)
6.7949 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
PCB Connection System, 1934299-1, TE Connectivity
Board-to-Board, Printed Circuit Board, Vertical, 72 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: LCP (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: straight
- Number of positions: 72
- Operating Temperature Range: -65 – 90 °C [-85 – 194 °F]
- Rated current: 0.5 A
- Centerline (Pitch): 1.9 mm
- Row-to-Row Spacing: 1.4 mm [0.055 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Connection | press-fit | |
| Connection plating | tin-plated | |
| Number of rows | 9 | |
| Version | pin header | |
| Additional parts | unequipped | |
| Breakable | No | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 250 V | |
| Rated current | 500 mA | |
| Orientation | straight | |
| Pin number | 72 pole | |
| Grid | 1.9 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
