1903747-1 | TE Connectivity

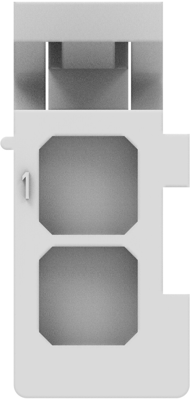

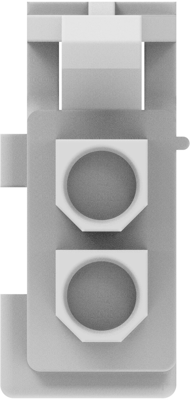

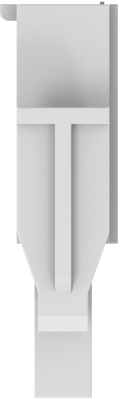

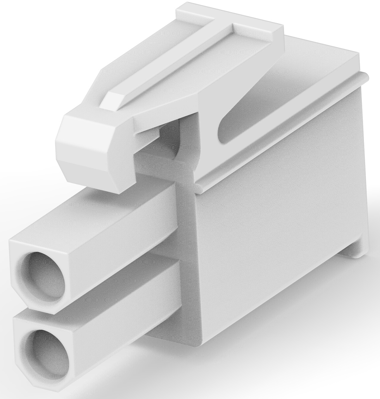

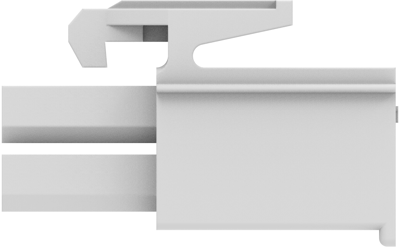

Plug housing, 2 pole, pitch 4.14 mm, straight, natural, 1903747-1
Order No.: 34P9593
EAN: 4099889920437
MPN:
1903747-1
Unit Price (€ / pc.)
0.1297 € *
Standard delivery time from the manufacturer is: 19 Weeks
PCB Connection System, 1903747-1, TE Connectivity
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon 6/6
- Housing Color: natural
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 4.14 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | natural | |
| Additional parts | unequipped | |
| Contact type | socket | |
| Grid | 4.14 mm | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Connection | crimp connection | |
| Breakable | No | |
| Pin number | 2 pole | |
| Version | plug housing | |
| Type of locking | No | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
