1903415-1 | TE Connectivity

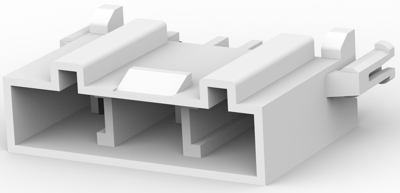

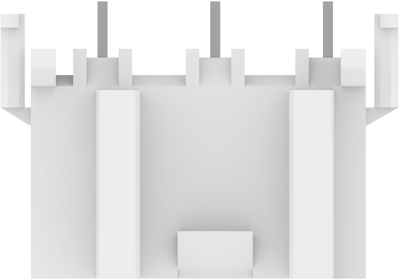

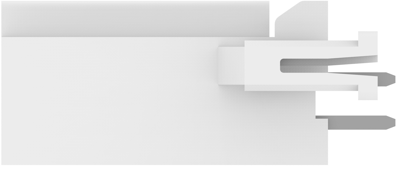

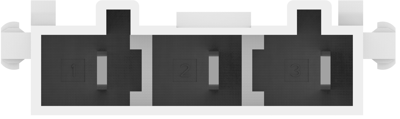

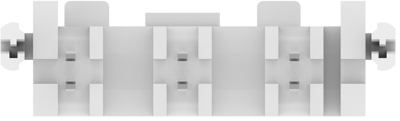

Socket header, 3 pole, pitch 9 mm, straight, natural, 1903415-1
Unit Price (€ / pc.)
2.0230 € *
Available in 5 Days: 135,824 pcs. - if ordered today
Total Price:
10.12 € *
Price list
Quantity
Price per unit*
5 pcs.
2.0230 €
10 pcs.
1.8683 €
25 pcs.
1.7493 €
50 pcs.
1.5827 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket header, 1903415-1, TE Connectivity
The 1903415-1 is a header assembly connector that employs an inertia locking mechanism to simultaneously complete the circuit and “lock” the connector, which is an excellent solution for helping to eliminate human error during assembly. This feature can improve mating reliability, helps prevent mismatching, and can reduce the need for complicated inspection processes.
Features
- Design assures proper insertion, preventing header pin deformation
Applications
- Washing machines
- Household appliances
- Air conditioners
- Industrial control
- HVAC systems
- Urethane coating on PCB boards
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 9 mm | |
| Pin number | 3 pole | |
| Colour | natural | |
| Connection plating | tin-plated | |
| Contact type | tab | |
| Rated current | 20 A | |
| Version | socket header | |
| Connection | solder connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 600 V | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
