1903414-1 | TE Connectivity

Plug housing, 3 pole, pitch 9 mm, straight, natural, 1903414-1

Order No.: 34P8823
EAN: 4099889916669
MPN:
1903414-1

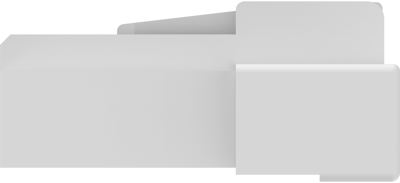

1903414-1 TE Connectivity PCB Connection Systems Image 1

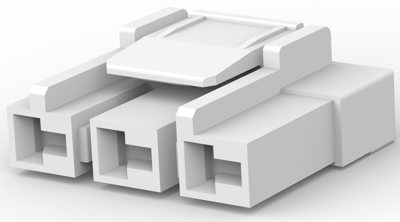

1903414-1 TE Connectivity PCB Connection Systems Image 2

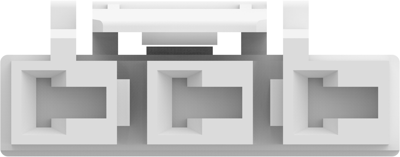

1903414-1 TE Connectivity PCB Connection Systems Image 3

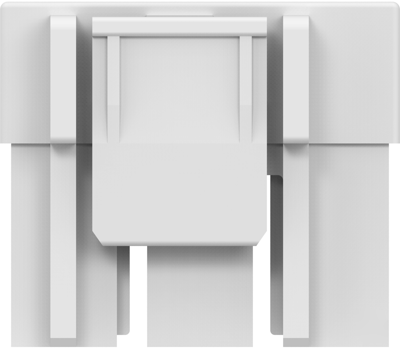

1903414-1 TE Connectivity PCB Connection Systems Image 4

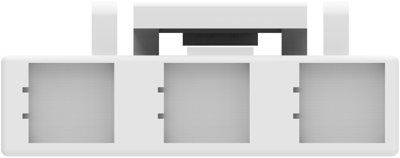

1903414-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
1,499.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.7497 €

PCB Connection System, 1903414-1, TE Connectivity

Wire-to-Board, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 6/6 GF
  • Housing Color: natural
  • Number of positions: 3
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 20 A
  • Centerline (Pitch): 9 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version plug housing
Contact type socket
Pin number 3 pole
Grid 9 mm
Connection crimp connection
Orientation straight
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 250 V
Rated current 20 A
Additional parts unequipped
Number of rows 1
Breakable No
Colour natural
Logistics
Country of origin MX
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
